Thermostat Housing: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: During installation, make sure the coolant outlet connection is fully seated on the thermostat housing before tightening the bolts.

Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
Remove the powertrain control module. Refer to: Powertrain Control Module (PCM) .

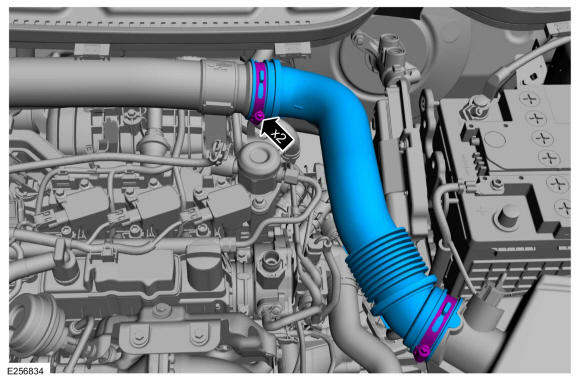

Release the clamps and remove the air cleaner outlet pipe.
Torque

: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Be prepared to collect escaping fluid.

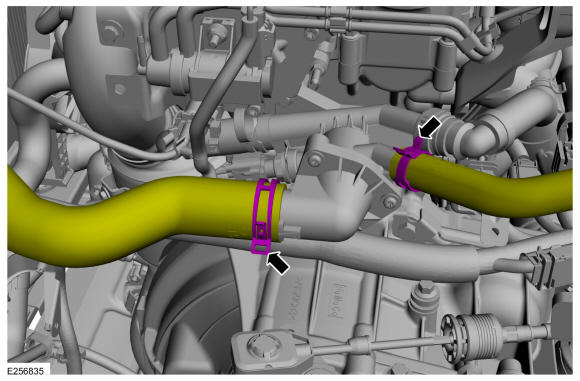

Release the clamps and disconnect the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY
NOTE: Be prepared to collect escaping fluid.

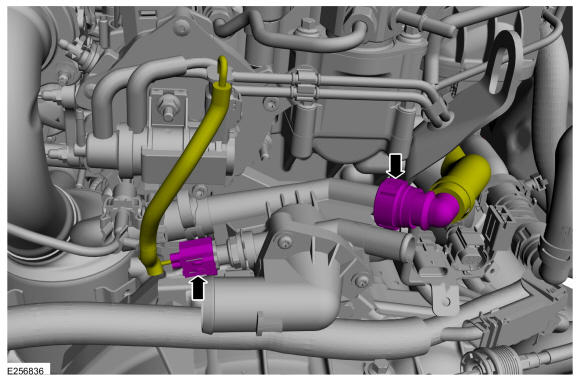

- Disconnect the electrical connector.
- Disconnect the quick release coupling.
Courtesy of FORD MOTOR COMPANY

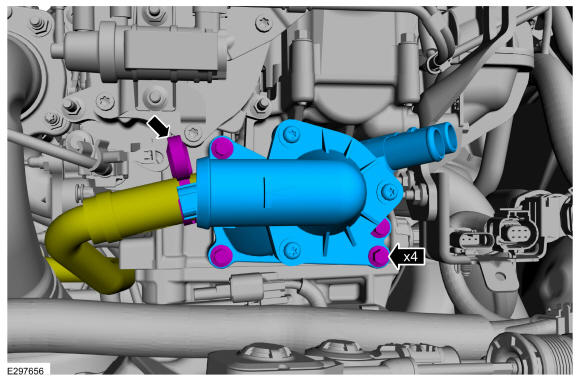

- Remove the bolts.
  Torque

  : 89 lb.in (10 Nm)
- Release the clamp, disconnect the coolant hose and remove the thermostat housing. Use the General Equipment: Hose Clamp Remover/Installer
Courtesy of FORD MOTOR COMPANY

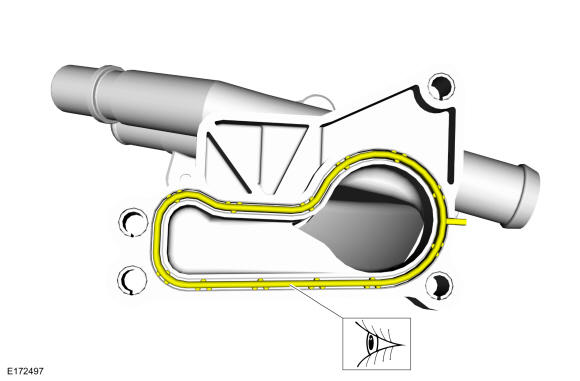

Inspect the thermostat housing O-ring seal and replace if necessary.

Courtesy of FORD MOTOR COMPANY
