Removal And Installation: Radiator: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
Recover the A/C system. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging - Vehicles With: R134A Refrigerant .
Remove the cooling fan motor and shroud. Refer to: Cooling Fan Motor and Shroud .
Remove the CAC. Refer to: Charge Air Cooler (CAC) .

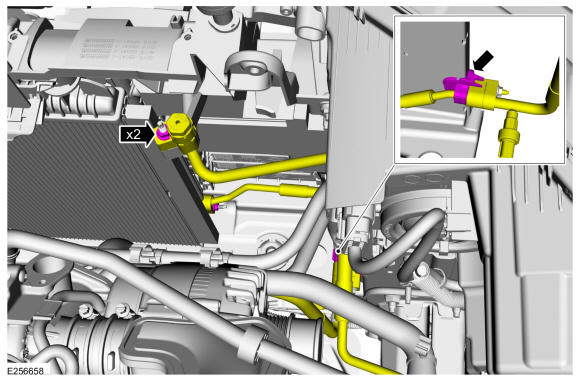

- Remove the condenser inlet and outlet nuts and disconnect the fittings. Discard the O-ring seals and gasket seals.
  Torque

  : 80 lb.in (9 Nm)
- Detach the A/C line.
Courtesy of FORD MOTOR COMPANY

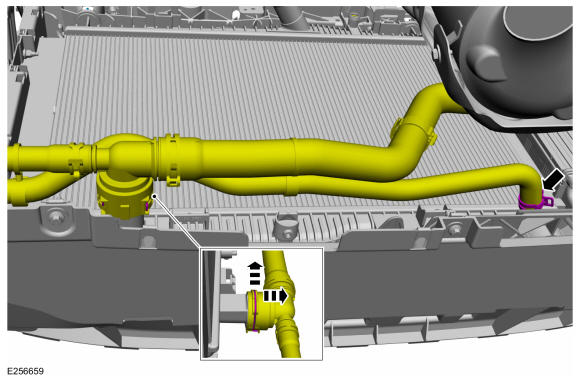

- Pull the lower radiator hose spring clip until the end of the clip is in the detent on the quick connect coupling and disconnect the lower radiator hose.
- Release the clamp and disconnect the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer
Courtesy of FORD MOTOR COMPANY

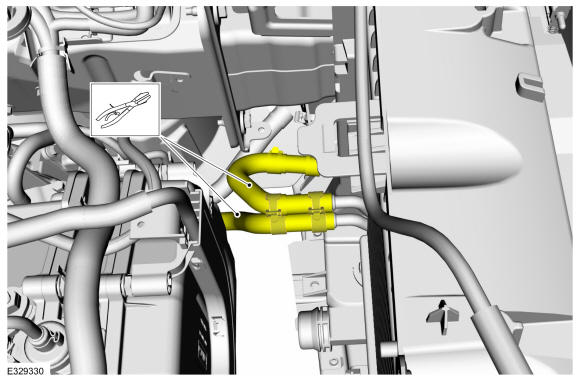

If equipped. Using general tool, clamp the transmission cooler lines. Use the General Equipment: Locking Pliers

Courtesy of FORD MOTOR COMPANY
NOTE: Be prepared to collect escaping fluid.

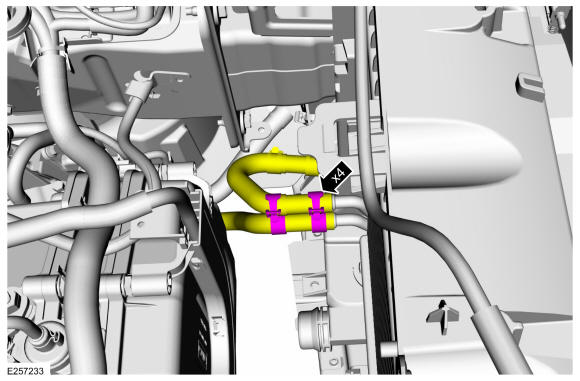

If equipped. Release the clamps and disconnect the transmission cooler lines. Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY

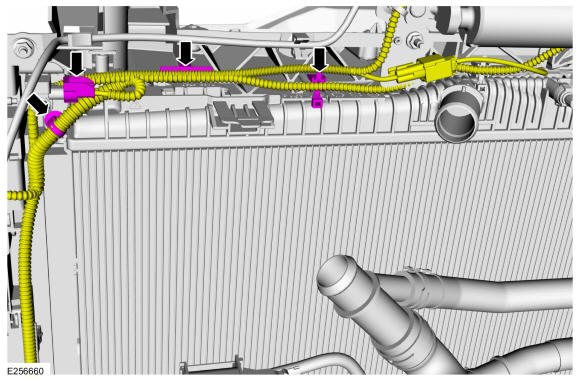

Detach the LH side crash sensor and the wiring harness retainers.

Courtesy of FORD MOTOR COMPANY

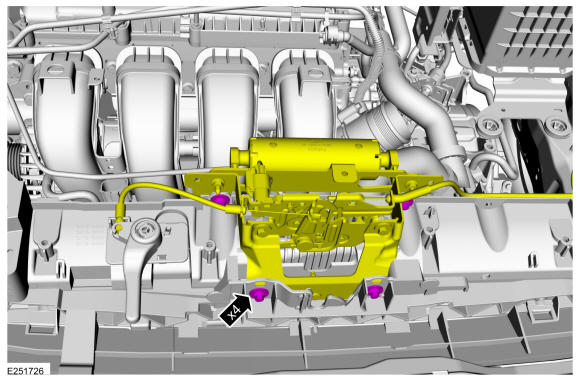

Remove the bolts and position the hood latch assembly aside.
Torque

: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY

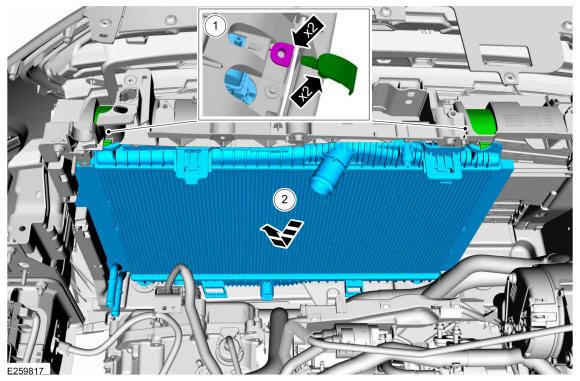

1. Remove the radiator upper mounting brackets and the radiator upper isolators.
2. Remove the cooling module.
Courtesy of FORD MOTOR COMPANY

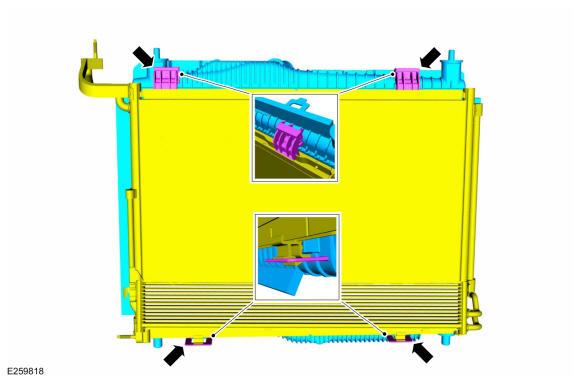

Release the clips and remove the A/C condenser and transmission fluid cooler (if equipped).

Courtesy of FORD MOTOR COMPANY
