Electric Coolant Pump: Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- WARNING: When releasing the cooling system pressure, cover the coolant expansion tank cap with a thick cloth.
Release the pressure in the cooling system by slowly turning the pressure relief cap counterclockwise.
- Remove the RH fender splash shield. Refer to: Fender Splash Shield .

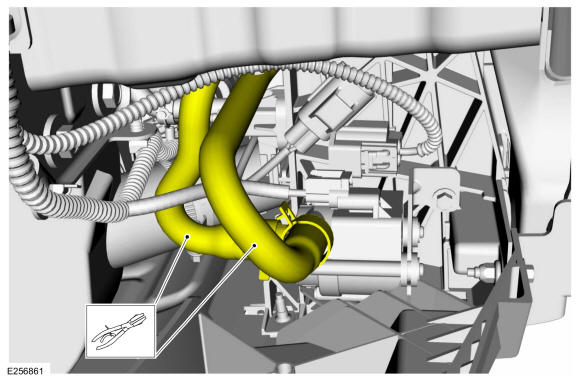

- Clamp off the coolant hoses. Use the General Equipment: Hose Clamp(s)
-

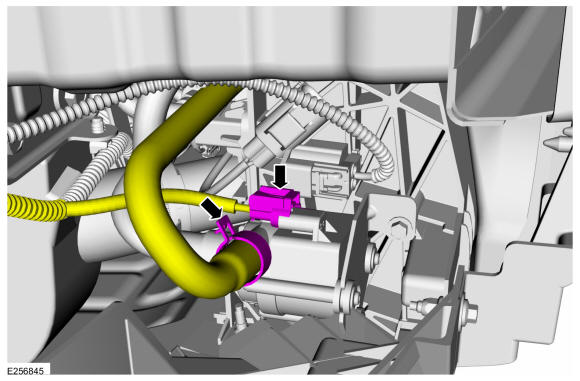

- Disconnect the electrical connector.
- Release the clamp and disconnect the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer
-
- Release the hose clamp and disconnect the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer

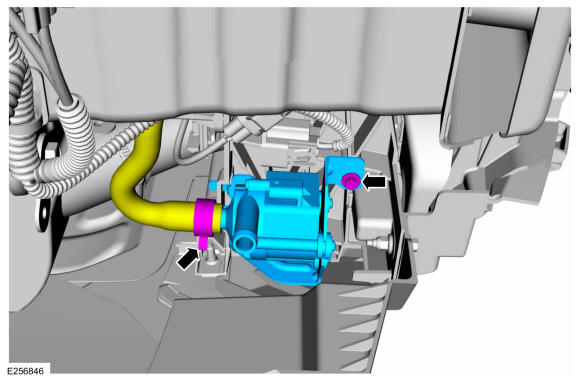

- Remove the bolt and the electric coolant pump.
Torque
: 53 lb.in (6 Nm)
