Coolant Pump: Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
- Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
- Loosen the clamp and disconnect the CAC intake pipe.

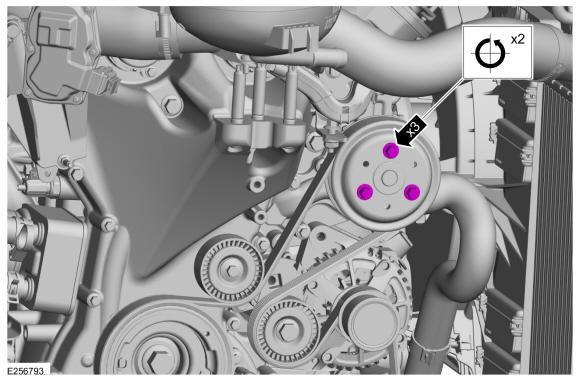

- Loosen the coolant pump pulley bolts.
- Remove the accessory drive belt. Refer to: Accessory Drive Belt .
- Remove the bolts and the coolant pump pulley.

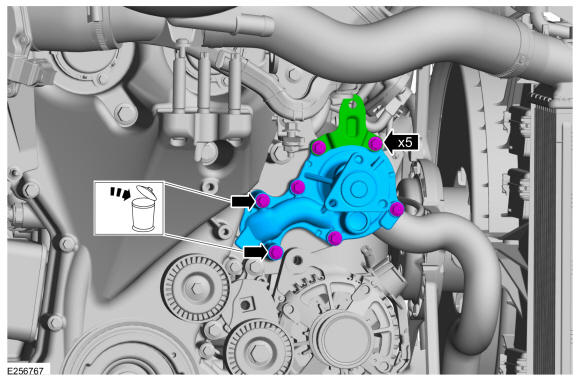

- Remove the bolts, the bracket and the coolant pump. Discard the bolts.
