Coolant Pump: Installation

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Only tighten the bolts finger tight at this stage.

NOTE: Make sure that new components are installed

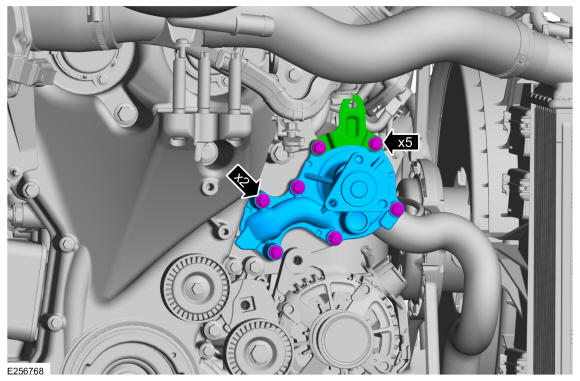

Install the coolant pump, the bracket and the bolts.

Courtesy of FORD MOTOR COMPANY

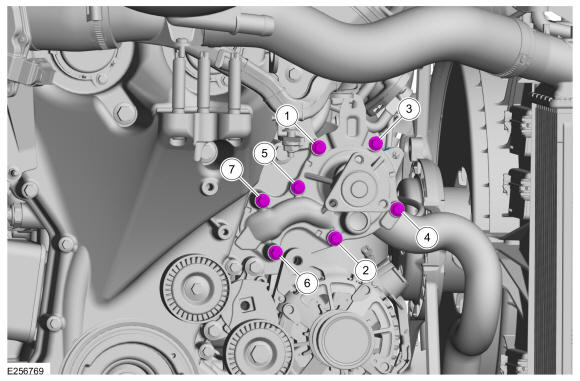

Tighten the bolts.
Torque

: 1-5: 89 lb.in (10 Nm) 6-7: Stage 1: 133 lb.in (15 Nm) Stage 2: 90 deg.

Courtesy of FORD MOTOR COMPANY
NOTE: Only tighten the bolts finger tight at this stage.

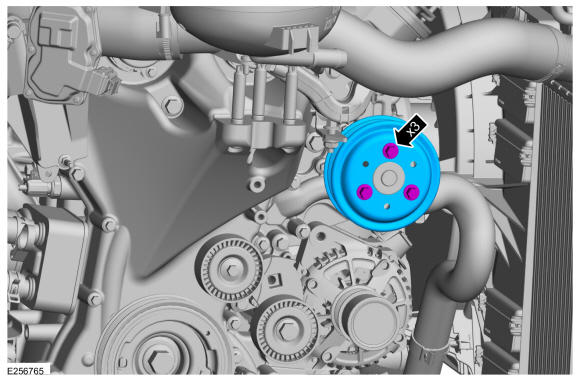

Position the coolant pump pulley and install the bolts finger tight.

Courtesy of FORD MOTOR COMPANY
Install the accessory drive belt. Refer to: Accessory Drive Belt .

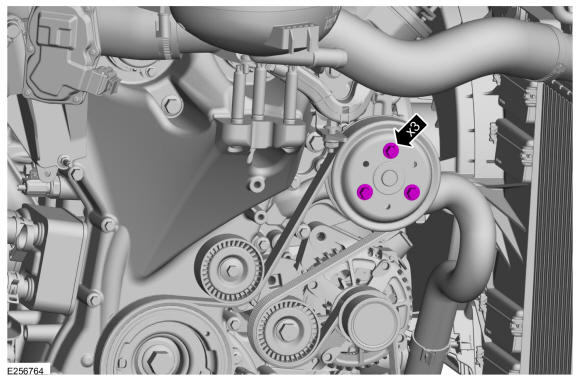

Tighten the coolant pump pulley bolts.
Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

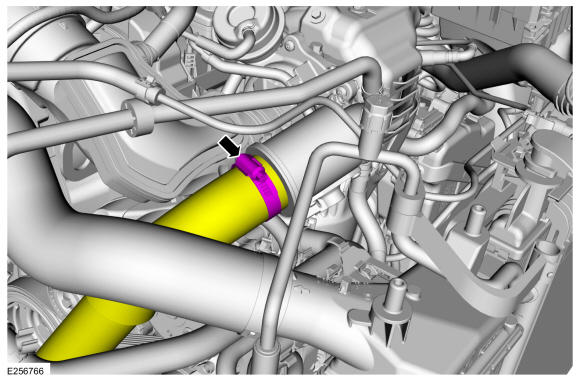

Connect the CAC intake pipe.
Torque

: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY
Fill and bleed the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
