Block Heater: Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION . Failure to follow this instruction may result in serious personal injury.
Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
-
NOTE: Be prepared to collect escaping fluid.
Remove and discard the engine oil filter.
-
NOTE: Make sure the block heater wiring is routed and secured away from rotating or hot components.

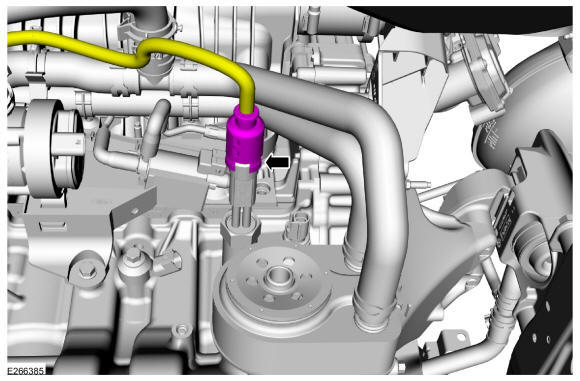

Disconnect the electrical connector.

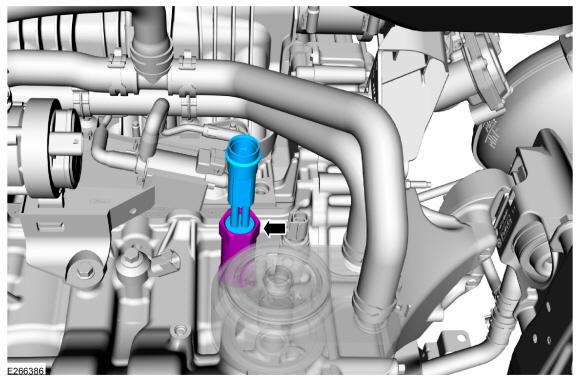

- Remove the block heater.
Torque
: 18 lb.ft (25 Nm)
