Engine Cooling - Component Location
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|

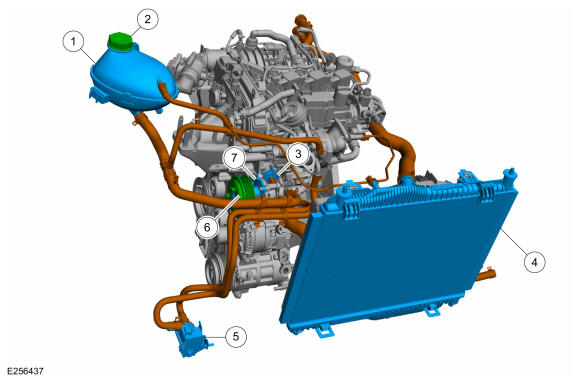

| Item |
Description |
| 1 |
Degas bottle |
| 2 |
Pressure relief cap |
| 3 |
Cylinder block thermostat |
| 4 |
Radiator |
| 5 |
Electric coolant pump |
| 6 |
Coolant pump pulley |
| 7 |
Coolant pump |
 Courtesy of FORD MOTOR COMPANY
|

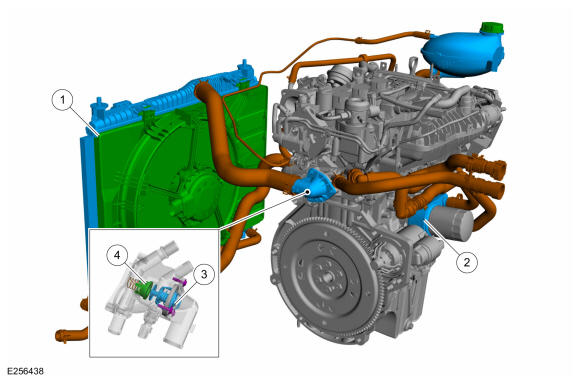

| Item |
Description |
| 1 |
Cooling fan motor and shroud |
| 2 |
Oil cooler |
| 3 |
Small and large coolant circuit thermostat |
| 4 |
Bypass valve |
