Fuel System Pressure Check

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

Special Tool(s) / General Equipment

GFD327938Courtesy of FORD MOTOR COMPANY
 310-025-18 Test Hose for 310-025
GFD327939Courtesy of FORD MOTOR COMPANY
 310-025-19A Test Hose for 310-025
GV2323 Connector
Pressure Vacuum Transducer (C407)
Pressure Vacuum Transducer (C219) Adapter
Ford Diagnostic Equipment

Connect

WARNING: WARNING: Before beginning any service procedure in this service information, refer to Health And Safety Precautions . Failure to follow this instruction may result in serious personal injury.
  1. Refer to: Gasoline and Gasoline-Ethanol Fuel Systems Health and Safety Precautions .
  2. Release the fuel system pressure. Refer to: Fuel System Pressure Release .
  3. Loosen the clamps and remove the air cleaner outlet pipe.

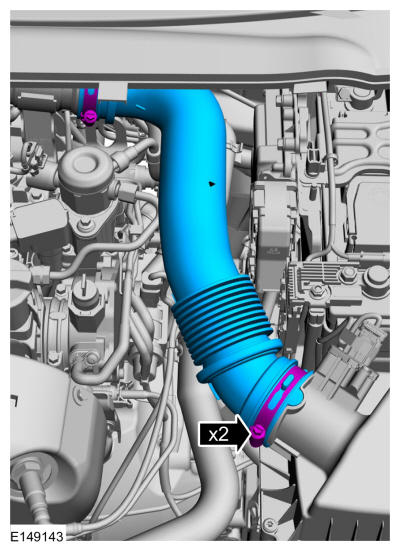

    GFD327940Courtesy of FORD MOTOR COMPANY
  4. Disconnect the quick release coupling. Refer to: Quick Release Coupling .

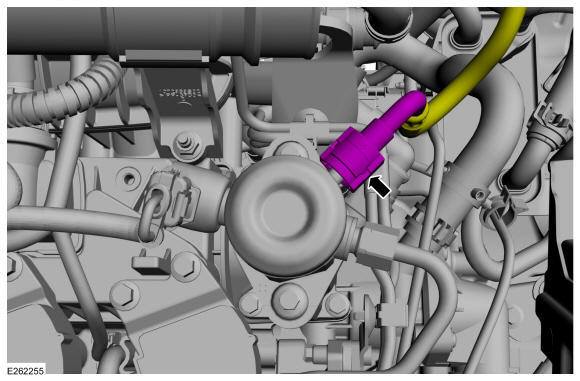

    GFD327941Courtesy of FORD MOTOR COMPANY
  5. Connect the following items: Use Special Service Tool: 310-025-18 Test Hose for 310-025., 310-025-19A Test Hose for 310-025.

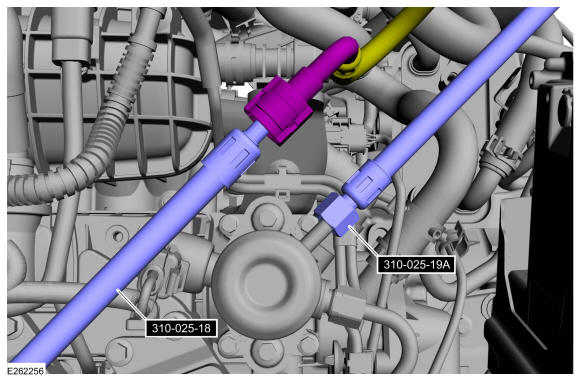

    GFD327942Courtesy of FORD MOTOR COMPANY
  6. Connect the following items: Use Special Service Tool: 310-025-18 Test Hose for 310-025., 310-025-19A Test Hose for 310-025. Use the General Equipment: GV2323 Connector
    GFD327943Courtesy of FORD MOTOR COMPANY
  7. Connect the following items: Use the General Equipment: GV2323 Connector Use the General Equipment: Pressure Vacuum Transducer (C219) Adapter
    GFD327944Courtesy of FORD MOTOR COMPANY
  8. Connect the following items: Use the General Equipment: Pressure Vacuum Transducer (C407) Use the General Equipment: Pressure Vacuum Transducer (C219) Adapter
GFD327945Courtesy of FORD MOTOR COMPANY

Check

  1. Using the digital multi-meter function, measure the fuel system pressure. Use the General Equipment: Ford Diagnostic Equipment
  2. Use the General Equipment: Ford Diagnostic Equipment
    GFD327946Courtesy of FORD MOTOR COMPANY
  3. Use the General Equipment: Ford Diagnostic Equipment
GFD327947Courtesy of FORD MOTOR COMPANY

Disconnect

  1. WARNING: WARNING: Be prepared to collect escaping fluid.

    Release the fuel system pressure.

    GFD327948Courtesy of FORD MOTOR COMPANY
  2. Disconnect the following items: Use the General Equipment: Pressure Vacuum Transducer (C407) Use the General Equipment: Pressure Vacuum Transducer (C219) Adapter
    GFD327945Courtesy of FORD MOTOR COMPANY
  3. Disconnect the following items: Use the General Equipment: GV2323 Connector Use the General Equipment: Pressure Vacuum Transducer (C219) Adapter
    GFD327944Courtesy of FORD MOTOR COMPANY
  4. Remove the special tools. Use Special Service Tool: 310-025-18 Test Hose for 310-025., 310-025-19A Test Hose for 310-025. Use the General Equipment: GV2323 Connector
    GFD327943Courtesy of FORD MOTOR COMPANY
  5. Remove the special tools. Use Special Service Tool: 310-025-18 Test Hose for 310-025., 310-025-19A Test Hose for 310-025.
    GFD327942Courtesy of FORD MOTOR COMPANY
  6. Connect the quick release coupling. Refer to: Quick Release Coupling .
    GFD327941Courtesy of FORD MOTOR COMPANY
  7. Install the air cleaner outlet pipe and tighten the clamps.

    Torque: 35 lb.in (4 Nm)

GFD327940Courtesy of FORD MOTOR COMPANY
