Passive Anti-Theft System (PATS) Front Antenna: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

  1. Remove the floor console. Refer to: Floor Console .
  2. Disconnect the PATS front antenna electrical connector.
    GFD328558Courtesy of FORD MOTOR COMPANY

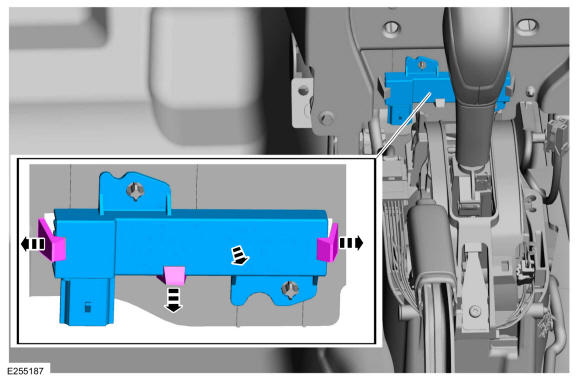

  3. Release the tabs and remove the PATS front antenna.
GFD328559Courtesy of FORD MOTOR COMPANY
