Passive Anti-Theft System (PATS) Center Antenna: Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
Vehicles with automatic transmission

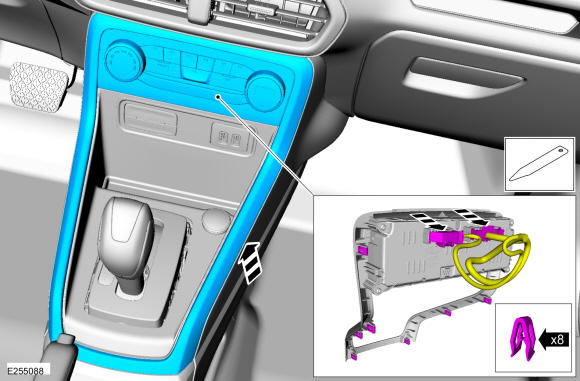

- Remove the selector lever trim panel. Use the General Equipment: Interior Trim Remover
All vehicles

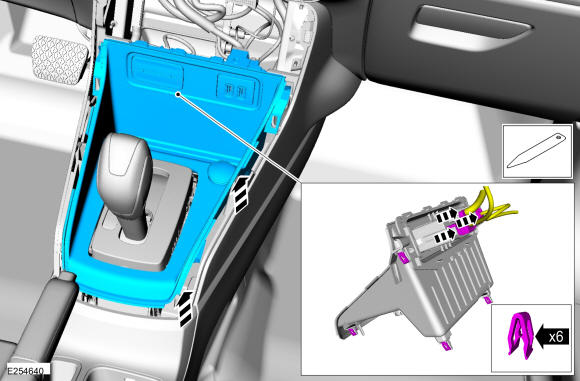

- Remove the floor console upper trim panel.
- Disconnect the electrical connectors.
Vehicles with automatic transmission

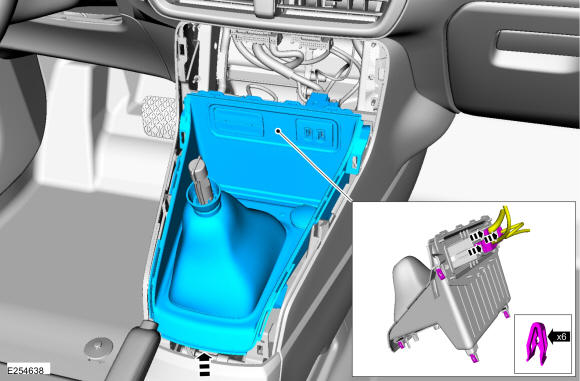

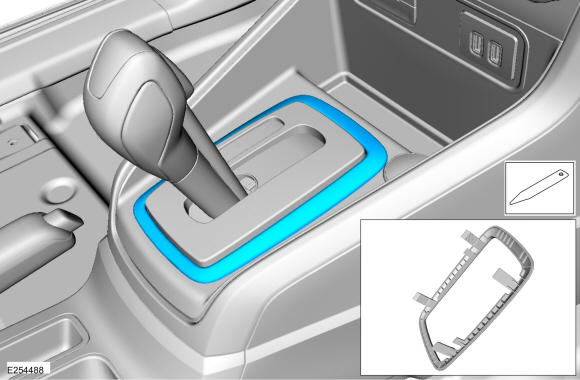

- Remove the selector lever finish panel.
- Disconnect the electrical connectors. Use the General Equipment: Interior Trim Remover
Vehicles with manual transmission

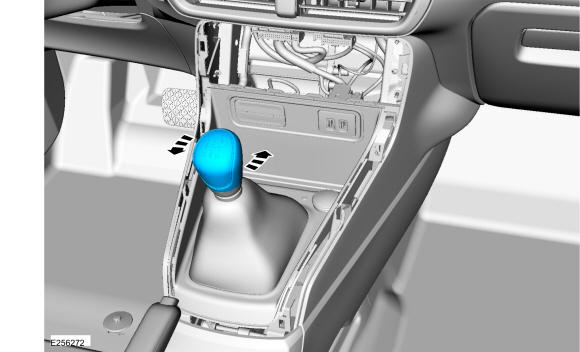

- Remove the selector lever knob.
- Remove the selector lever finish panel.
- Disconnect the electrical connectors.
All vehicles

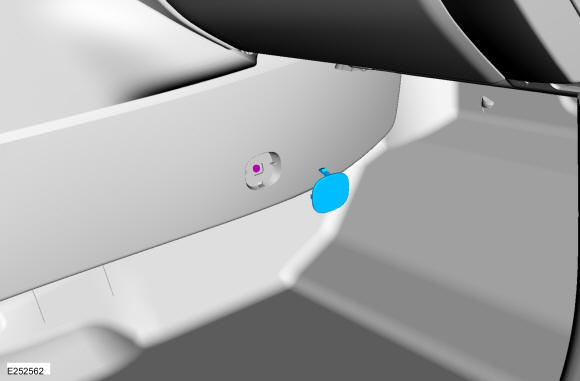

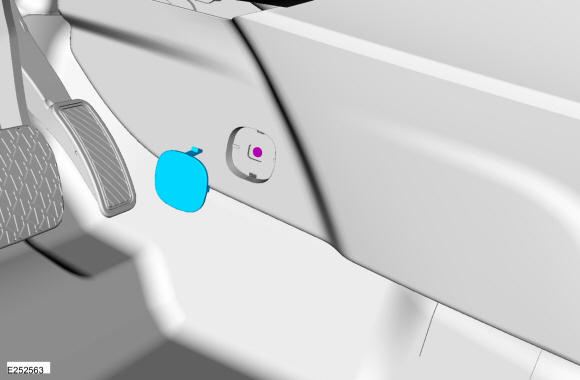

- Remove the RH cover and bolt.
Torque: 27 lb.in (3 Nm)

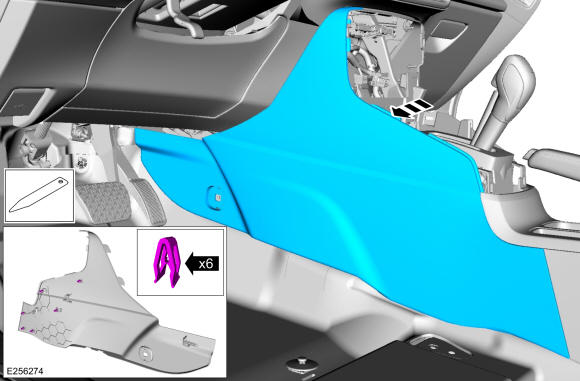

- Remove the RH floor console front trim panel. Use the General Equipment: Interior Trim Remover
- Remove the LH cover and bolt.
Torque: 27 lb.in (3 Nm)

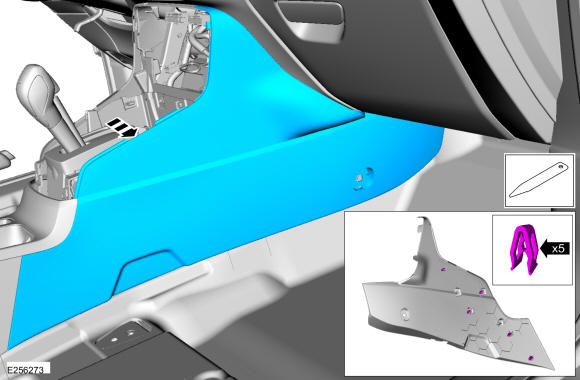

- Remove the LH floor console front trim panel. Use the General Equipment: Interior Trim Remover

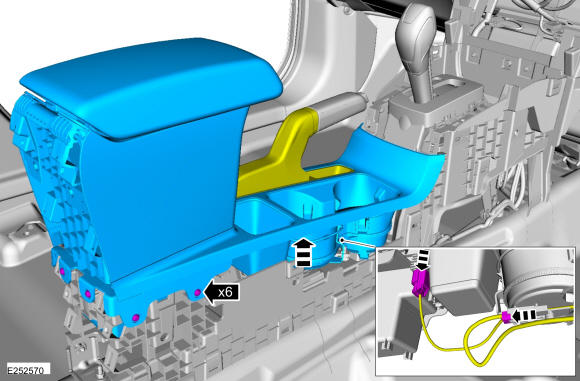

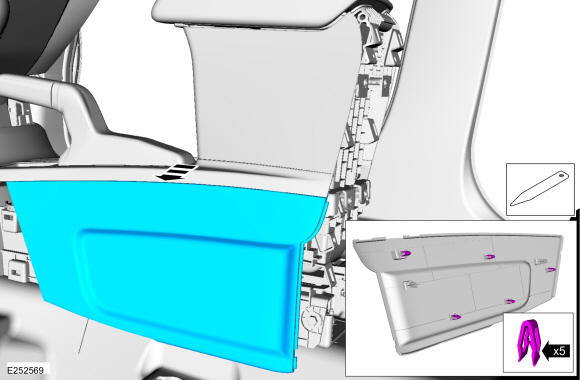

- Remove the floor console rear trim panel.
- Disconnect the electrical connector. Use the General Equipment: Interior Trim Remover

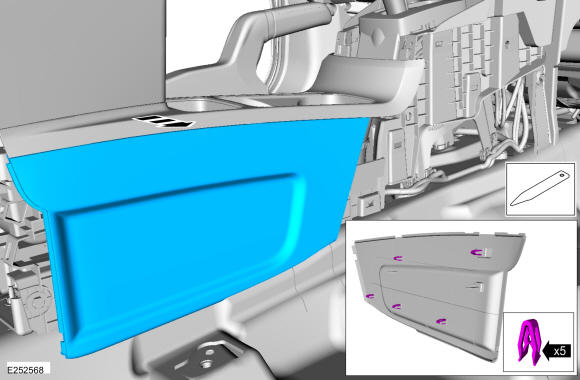

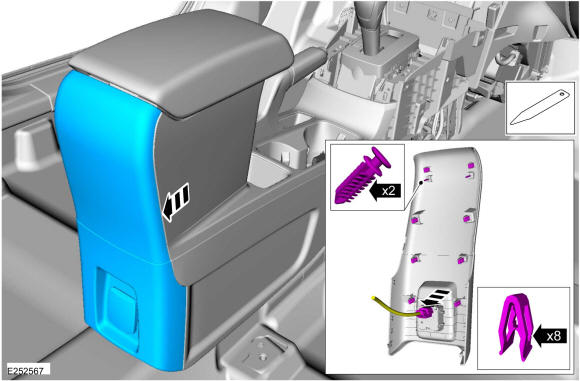

- Remove the RH floor console rear side trim panel. Use the General Equipment: Interior Trim Remover
- Remove the LH floor console rear side trim panel.
-

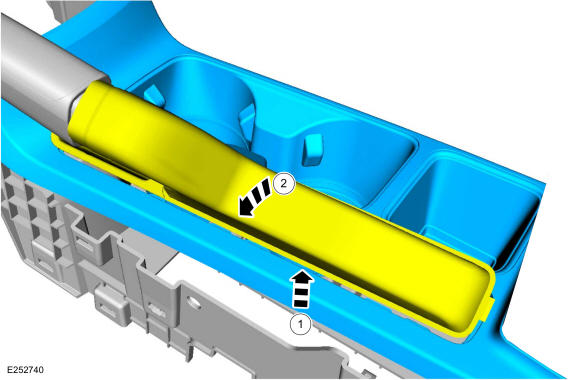

- Position the parking brake lever boot upward.
- Rotate the parking brake lever boot so that it fits through the opening in the floor console upper finish panel.
- Remove the screws and the floor console upper finish panel.
- Disconnect the electrical connectors.

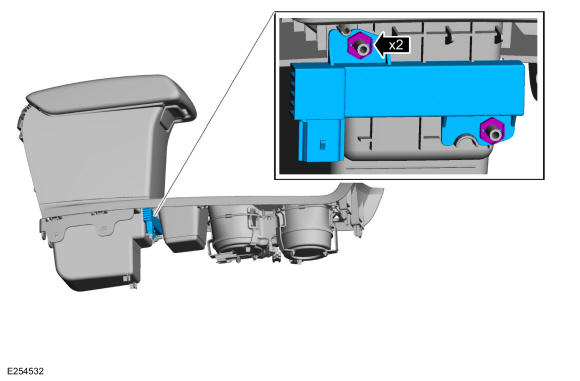

- Remove the nuts and the PATS center antenna.
