Section 88 (Passive Anti-Theft System (Pats) - Vehicles With: Keyless Entry And Push Button Start)
>>
Description And Operation
>>

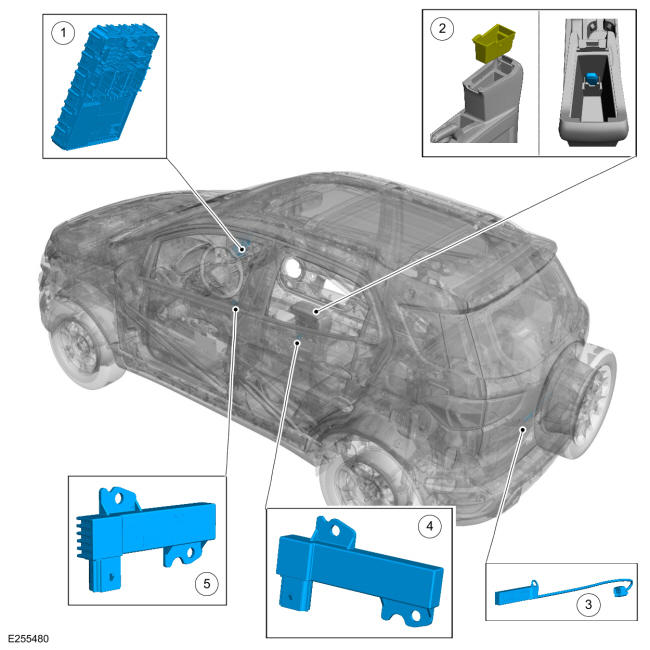

Passive Anti-Theft System (PATS) - Component Location
Passive Anti-Theft System (PATS) - Component Location
WARNING:
This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR COMPANY
Item
Description
1
BCM
2
Passive key backup starting location
3
Keyless entry rear antenna
4
PATS center antenna
5
PATS front antenna
