Passive Anti-Theft System (PATS) Transceiver: Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
- Remove the steering column shroud. Refer to: Steering Column Shrouds .

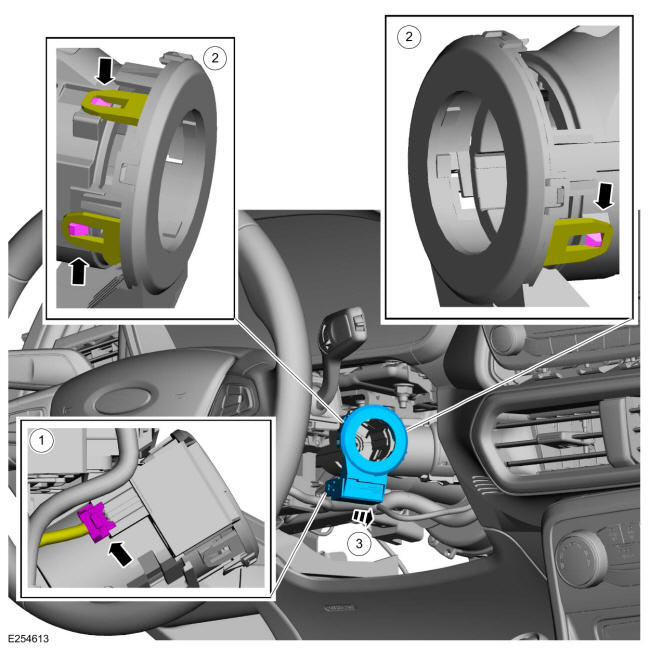

- Remove the PATS transceiver.
- Disconnect the PATS transceiver electrical connector.
- Release the tabs.
- Slide the PATS transceiver off the ignition housing.
