Wiper Linkage Assembly: Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Make sure that the wiper motor is in the park position.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the cowl panel. Refer to: Cowl Panel .

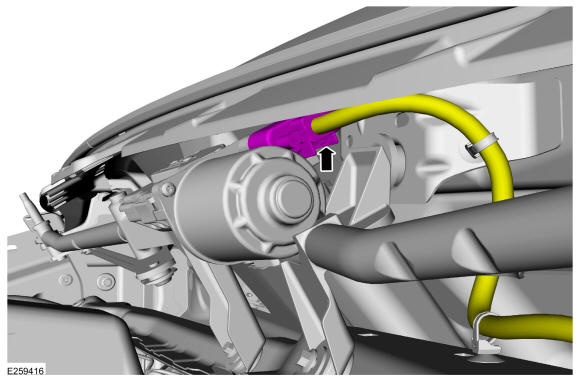

- Disconnect the windshield wiper motor electrical connector.

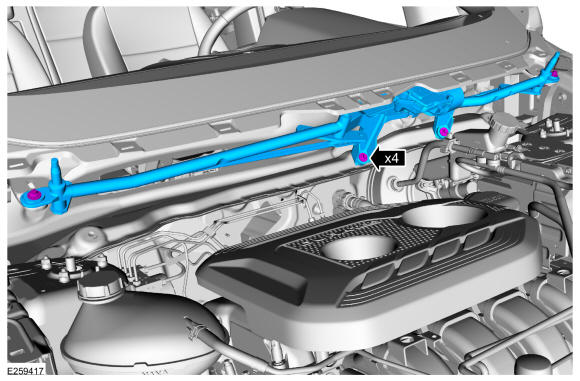

- Remove the bolts and the wiper linkage and motor as an assembly.
Torque: 53 lb.in (6 Nm)
