Windshield Wiper Pivot Arm: Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.

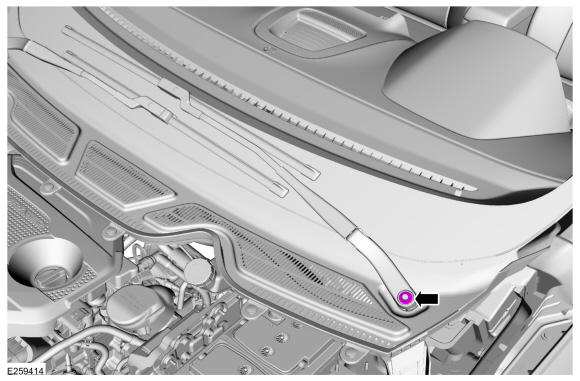

- Remove the cap.
 Courtesy of FORD MOTOR COMPANY
|
- Remove the nut.
Torque: 18 lb.ft (25 Nm)
 Courtesy of FORD MOTOR COMPANY
|

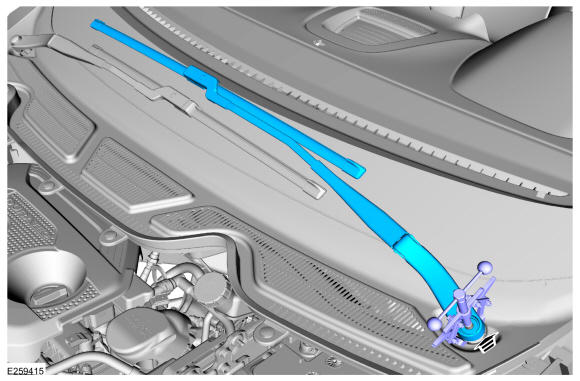

- Using a puller, remove the windshield wiper pivot arm. Use the General Equipment: Two Leg Puller
 Courtesy of FORD MOTOR COMPANY
|
