Windshield Washer Reservoir: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

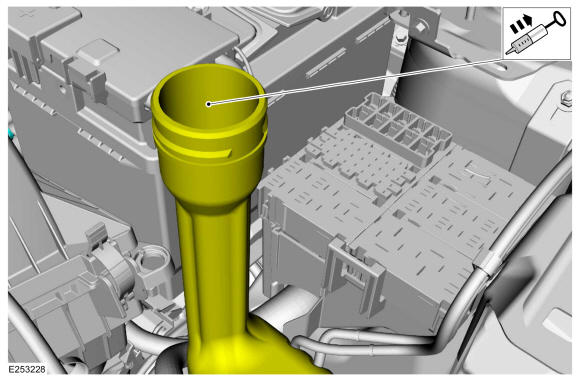

Using a suction gun, remove the windshield washer fluid from the reservoir. Use the General Equipment: Fluid Suction Gun

Courtesy of FORD MOTOR COMPANY
Remove the LH headlamp assembly.
If equipped.

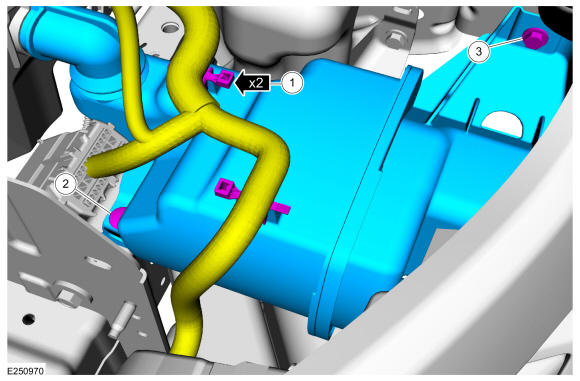

1. Detach the wiring harness retainers.
2. Remove the pin type retainer.
3. Remove the bolt and the engine air intake resonator.
  Torque: 27 lb.in (3 Nm)
Courtesy of FORD MOTOR COMPANY

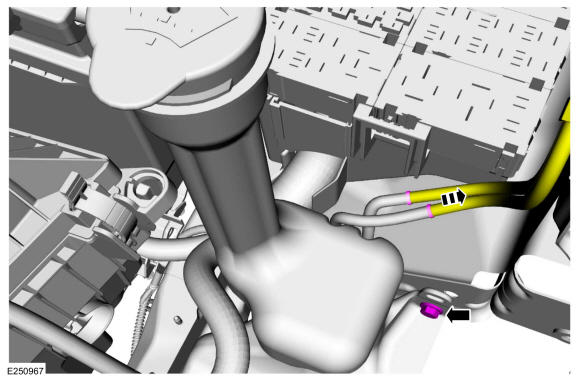

Disconnect the hoses and remove the bolt.
Torque: 27 lb.in (3 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the LH fender splash shield. Refer to: Fender Splash Shield .

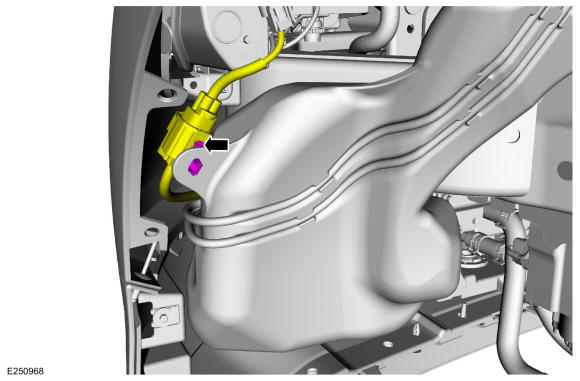

Detach the wiring harness retainer.

Courtesy of FORD MOTOR COMPANY

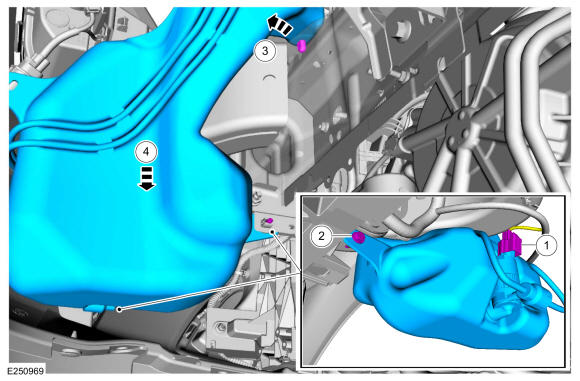

1. Disconnect the windshield washer pump electrical connector.
2. Remove the lower windshield washer reservoir bolt and the windshield washer reservoir.
  Torque: 27 lb.in (3 Nm)
3. Lift and detach the reservoir from the body.
4. Lower and remove the windshield washer reservoir.

Courtesy of FORD MOTOR COMPANY
