Windshield Washer Pump: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

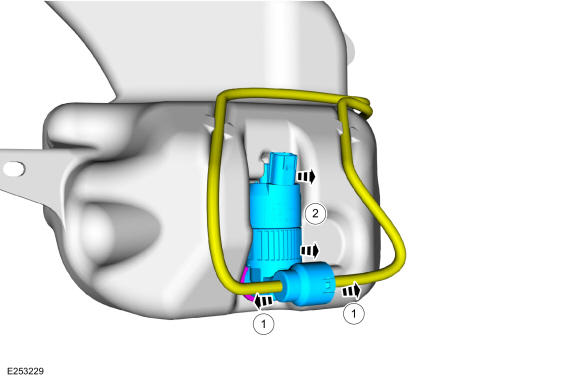

  1. Remove the windshield washer reservoir. Refer to: Windshield Washer Reservoir .
    1. Disconnect the windshield washer pump fluid hoses.
    2. Remove the windshield washer pump.
GFD329212Courtesy of FORD MOTOR COMPANY
