Rear Window Wiper Pivot Arm: Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Make sure that the motor is in the park position.
NOTE:
Removal steps in this procedure may contain installation details.

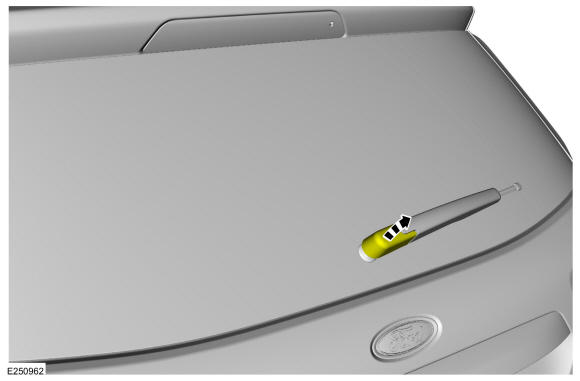

- Pivot the cover to access the wiper pivot arm nut.

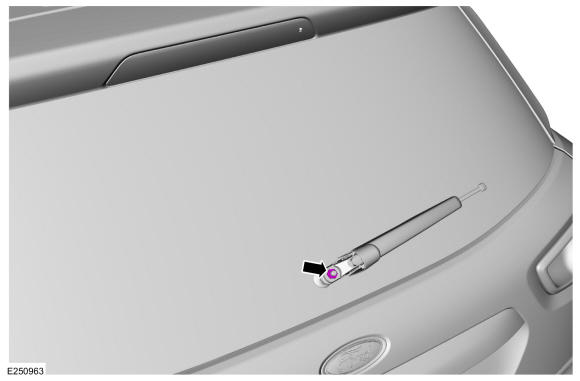

- Remove the rear widow wiper pivot arm nut.
Torque: 124 lb.in (14 Nm)

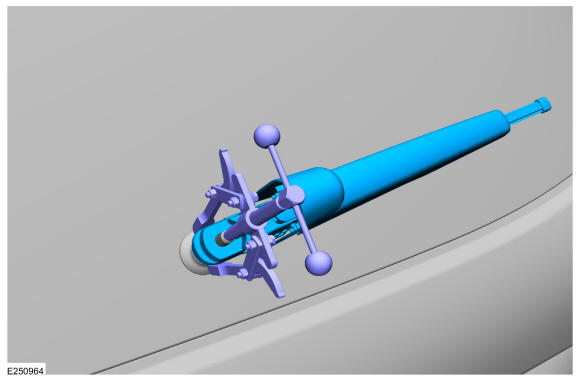

- Using a puller, remove the rear widow wiper pivot arm. Use the General Equipment: Two Leg Puller
