Rear Window Wiper Motor: Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the rear window wiper pivot arm. Refer to: Rear Window Wiper Pivot Arm .
- Remove the liftgate trim panel. Refer to: Liftgate Trim Panel .

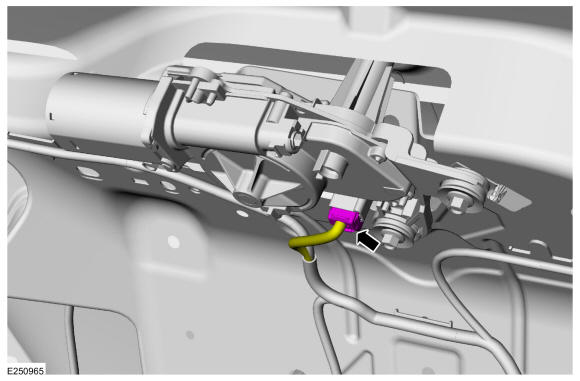

- Disconnect the rear window wiper motor electrical connector.

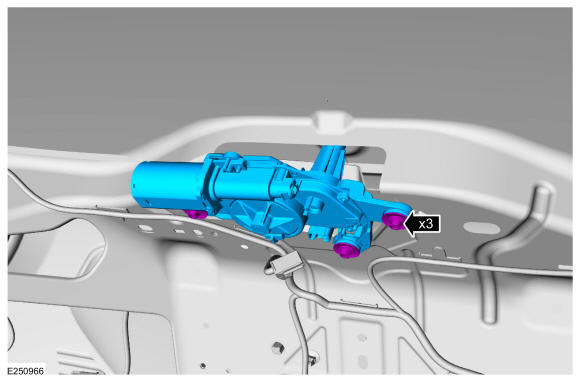

- Remove the bolts and the rear window wiper motor.
Torque: 62 lb.in (7 Nm)
