Side Curtain Airbag - Vehicles With: Rear Seat Side Airbag: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: WARNING: The following procedure prescribes critical repair steps required for correct restraint system operation during a crash. Follow all notes and steps carefully. Failure to follow step instructions may result in incorrect operation of the restraint system and increases the risk of serious personal injury or death in a crash.

NOTE: LH side curtain airbag shown, RH similar.

NOTE: Removal steps in this procedure may contain installation details.

WARNING: WARNING: Before beginning any service procedure in this service information, refer to health and safety warnings in General Information. Failure to follow this instruction may result in serious personal injury.

Refer to: Pyrotechnic Device Health and Safety Precautions .
Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .
Remove the headliner. Refer to: Headliner .

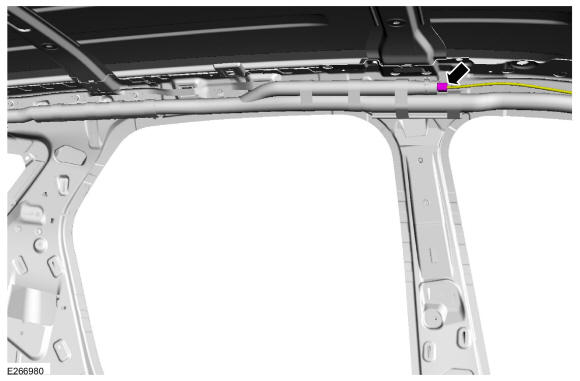

Disconnect the side curtain airbag electrical connector.

Courtesy of FORD MOTOR COMPANY

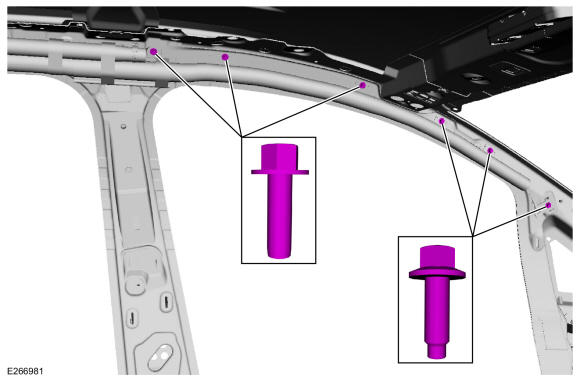

Remove the side curtain airbag front screws.
Torque

80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

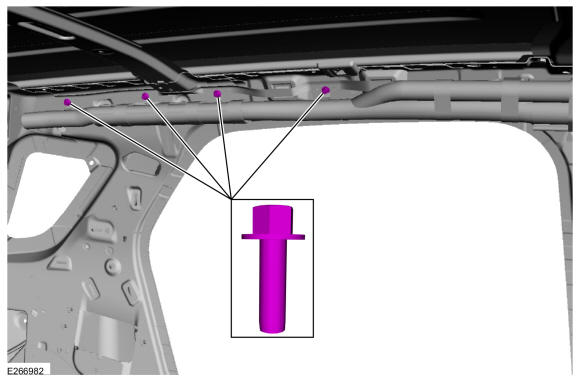

Remove the side curtain airbag rear screws.
Torque

80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

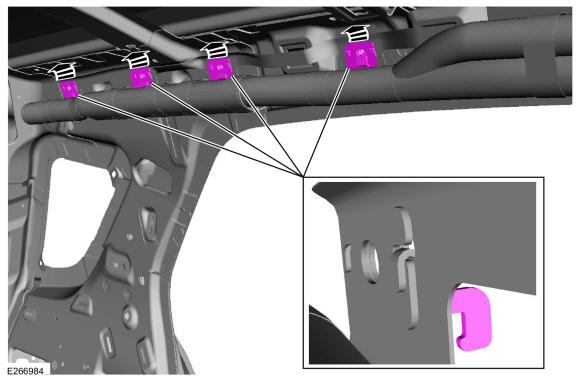

Slide the rear retainers up and rotate them out of the sheet metal.

Courtesy of FORD MOTOR COMPANY

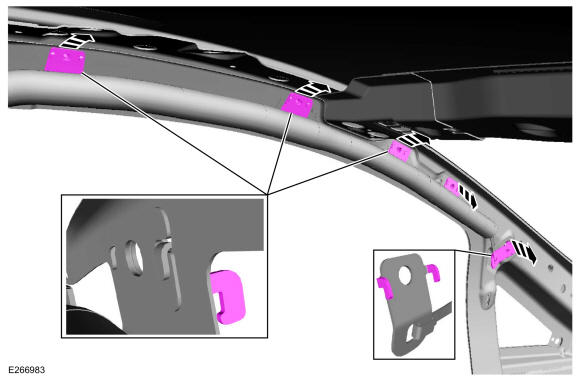

- Slide the front hooked retainers up and rotate them out of the sheet metal.
- Separate the remaining retainer.
Courtesy of FORD MOTOR COMPANY

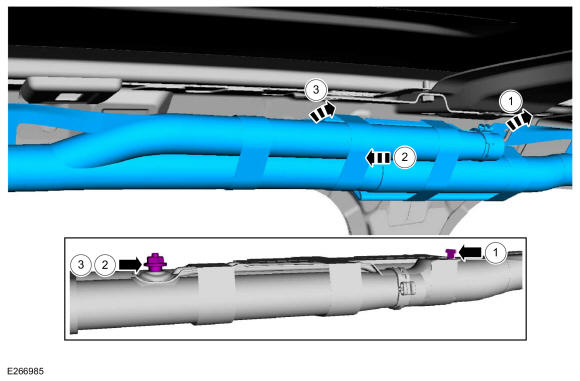

1. Rotate the top of the retainer and disengage the T-tab from the sheet metal.
2. Slide the side curtain airbag rearward.
3. Lift and pull out, removing the side curtain airbag.

Courtesy of FORD MOTOR COMPANY
