Seatbelt Minder Sensor: Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LHD passenger seat shown, RHD passenger seat similar.
-
WARNING: WARNING: Before beginning any service procedure in this service information, refer to health and safety warnings in General Information. Failure to follow this instruction may result in serious personal injury.
Refer to: Pyrotechnic Device Health and Safety Precautions .
- Remove the front passenger seat. Refer to: Front Seat .

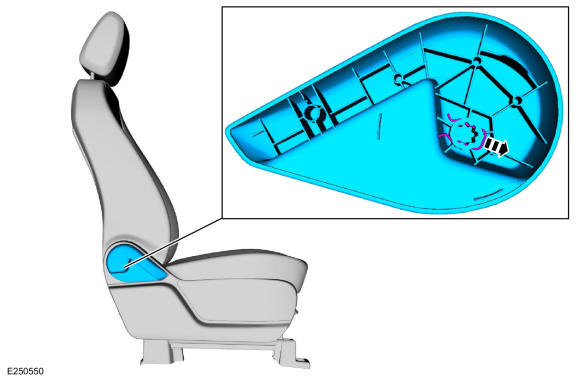

- Remove the clip and the recline handle.
-

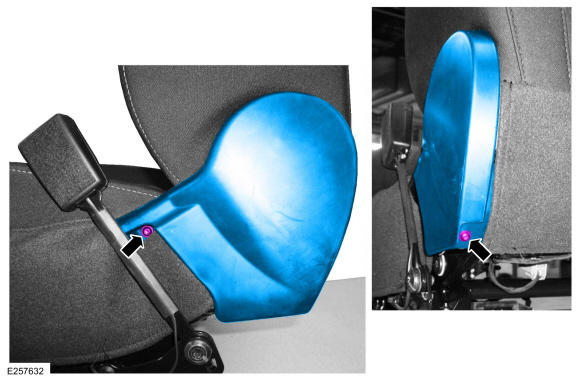

- Remove the screw.

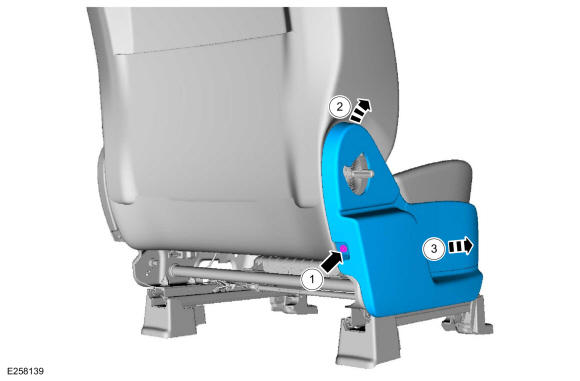

- Lift the rear of the side shield up and out.
- Slide forward and remove the side shield.
- Remove the screws and the recliner cover.

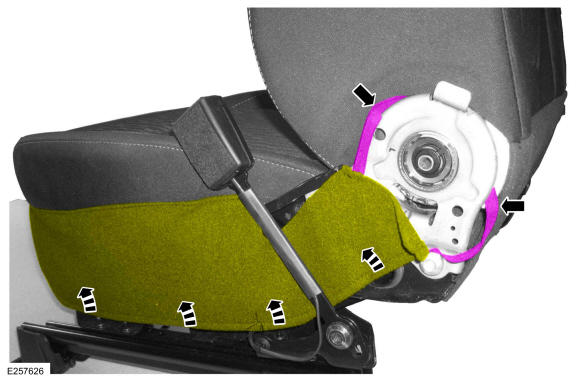

- Detach the strap and position the cushion cover apron upward.
-
- Detach the backrest cover straps.
- Position the backrest cover upward.
- Disconnect the seatbelt minder sensor electrical connector.

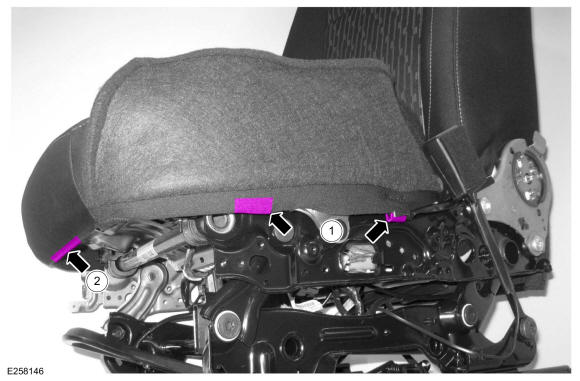

- Detach the cushion cover rear J-clips.
-
- On both sides. Detach the cushion cover J-clips.
- Detach the cushion cover J-clip.

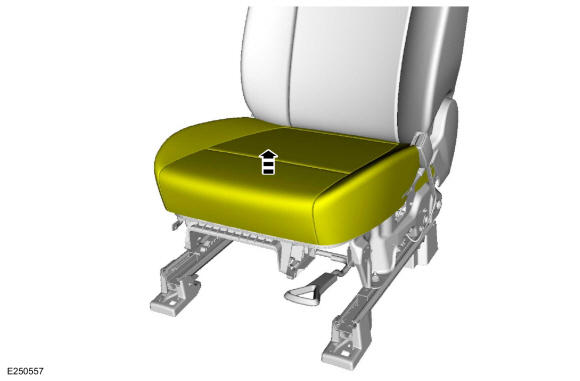

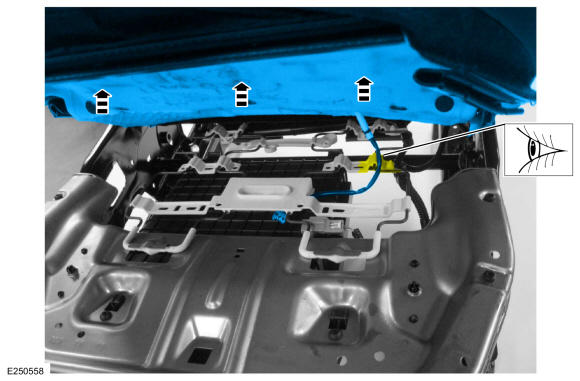

- Lift up on the front seat cushion cover and foam assembly.
-
NOTE: For correct installation, note the location of the seatbelt minder sensor wiring pigtail as it passes through the seat track.

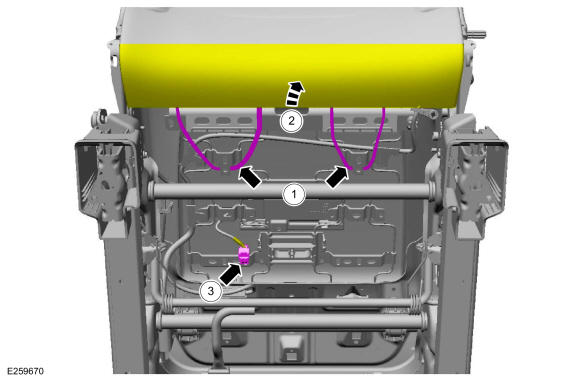

Route out the seatbelt minder sensor wiring pigtail and remove the front seat cushion cover and foam as an assembly.
-
NOTE: Follow the unique instructions or graphic for this step in the installation.

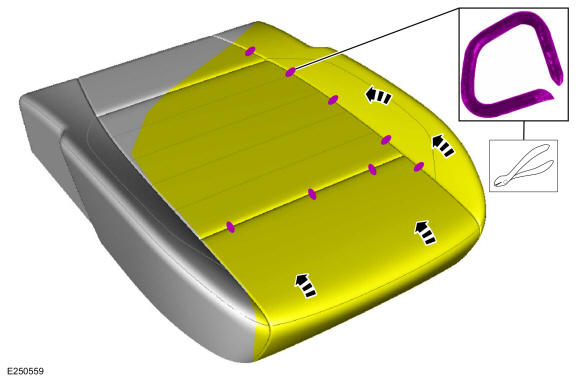

Remove the hog rings and position the cushion cover aside.
-
NOTE: Follow the unique instructions or graphic for this step in the installation.

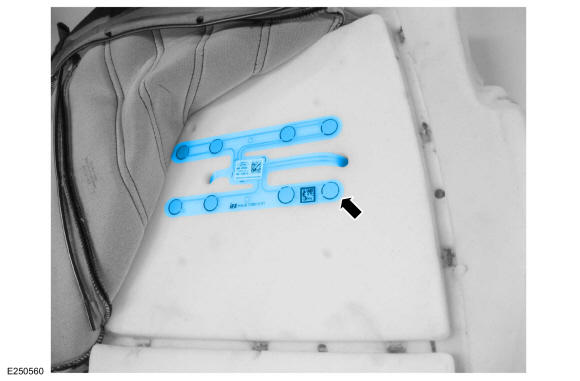

Remove the seatbelt minder sensor.
