Seatbelt Minder Sensor: Installation

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
  1. To install, reverse the removal procedure.

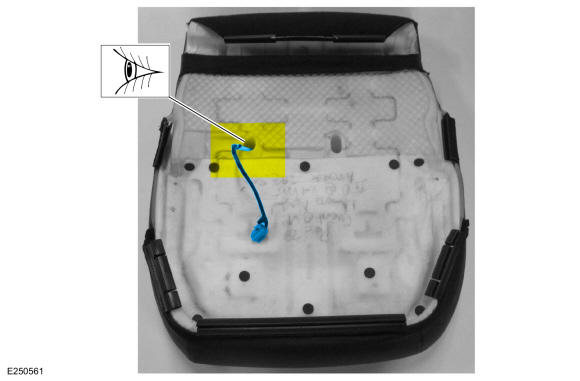

  2. Route the seatbelt minder sensor wiring pigtail through the correct cushion foam hole.
    GFD329571Courtesy of FORD MOTOR COMPANY

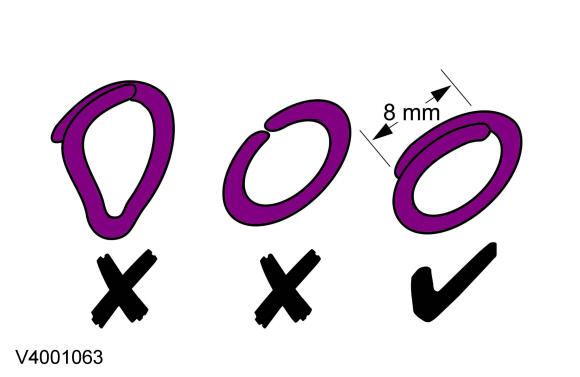

  3. Use the General Equipment: Hog Ring Plier
GFD329572Courtesy of FORD MOTOR COMPANY
