Seat Position Sensor: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

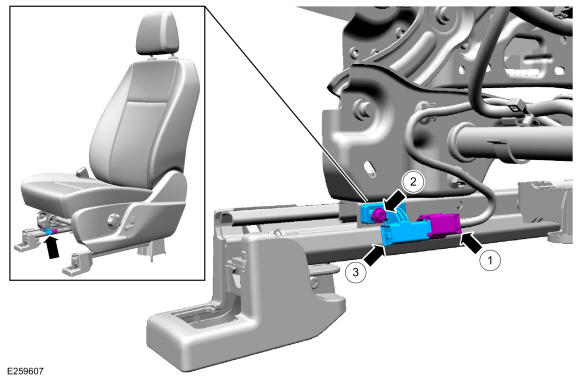

NOTE: LH power seat shown, other seats similar.

NOTE: Removal steps in this procedure may contain installation details.

1. Disconnect the electrical connector.
2. Remove the screw.
  Torque

  8 lb.in (0.9 Nm)
3. Remove the seat position sensor.

Courtesy of FORD MOTOR COMPANY
