Front Impact Severity Sensor: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: WARNING: The following procedure prescribes critical repair steps required for correct restraint system operation during a crash. Follow all notes and steps carefully. Failure to follow step instructions may result in incorrect operation of the restraint system and increases the risk of serious personal injury or death in a crash.

NOTE: Removal steps in this procedure may contain installation details.

WARNING: WARNING: Before beginning any service procedure in this service information, refer to health and safety warnings in General Information. Failure to follow this instruction may result in serious personal injury.

Refer to: Pyrotechnic Device Health and Safety Precautions .
Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .

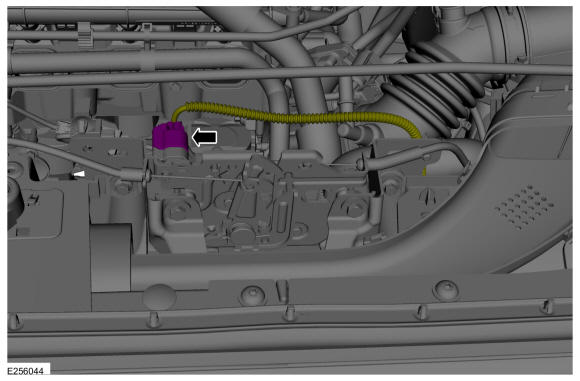

If equipped. Disconnect the hood ajar switch electrical connector.

Courtesy of FORD MOTOR COMPANY

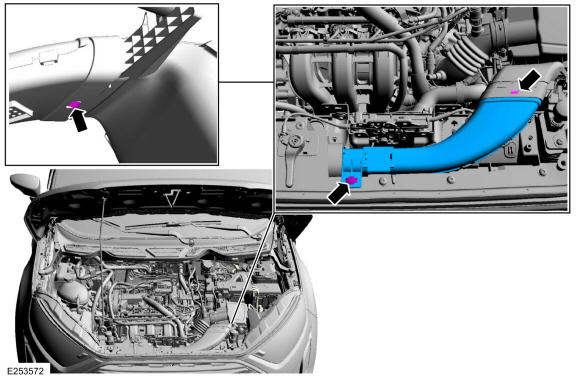

Remove the pin-type retainer, disengage the tabs and remove the air cleaner inlet pipe.

Courtesy of FORD MOTOR COMPANY

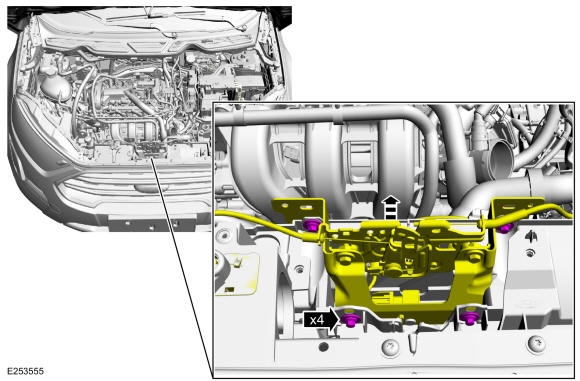

Remove the bolts and separate the hood latch and bracket.
Torque

42 lb.in (4.8 Nm)

Courtesy of FORD MOTOR COMPANY

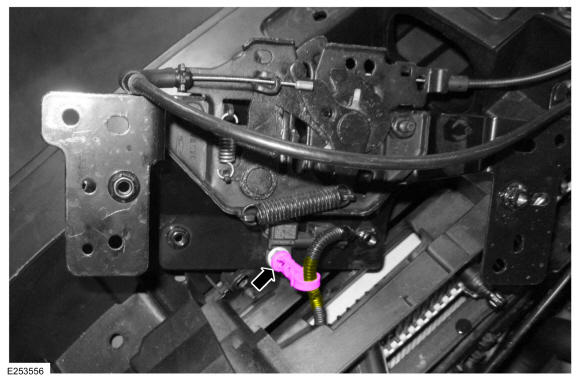

Detach the wiring harness retainer.

Courtesy of FORD MOTOR COMPANY

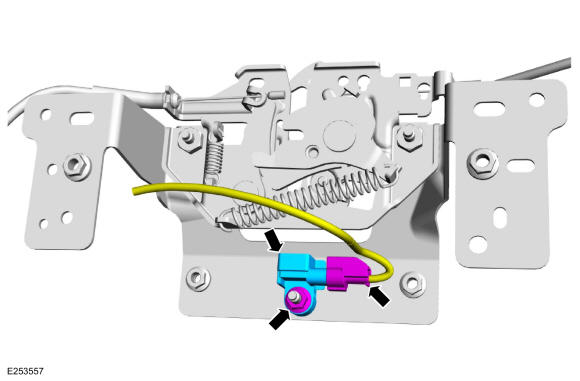

Disconnect the electrical connector, remove the nut and front impact severity sensor.
Torque

93 lb.in (10.5 Nm)

Courtesy of FORD MOTOR COMPANY
