Front Impact Severity Sensor - Vehicles With: Rear Seat Side Airbag: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: WARNING: The following procedure prescribes critical repair steps required for correct restraint system operation during a crash. Follow all notes and steps carefully. Failure to follow step instructions may result in incorrect operation of the restraint system and increases the risk of serious personal injury or death in a crash.

NOTE: Removal steps in this procedure may contain installation details.

WARNING: WARNING: Before beginning any service procedure in this service information, refer to health and safety warnings in General Information. Failure to follow this instruction may result in serious personal injury.

Refer to: Pyrotechnic Device Health and Safety Precautions .
Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .

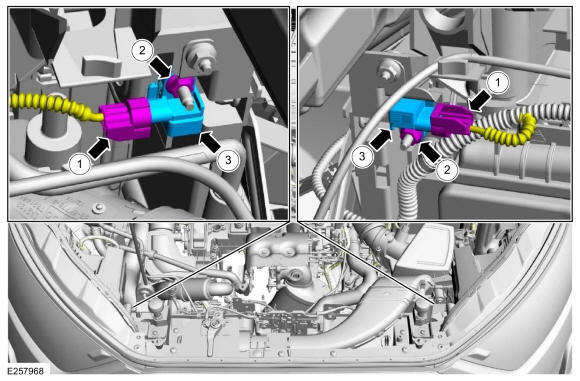

1. Disconnect the electrical connector.
2. Remove the nut.
  Torque

  62 lb.in (7 Nm)
3. Remove the front impact severity sensor.

Courtesy of FORD MOTOR COMPANY
