Driver Airbag: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: WARNING: The following procedure prescribes critical repair steps required for correct restraint system operation during a crash. Follow all notes and steps carefully. Failure to follow step instructions may result in incorrect operation of the restraint system and increases the risk of serious personal injury or death in a crash.

WARNING: WARNING: Before beginning any service procedure in this service information, refer to health and safety warnings in General Information. Failure to follow this instruction may result in serious personal injury.

Refer to: Pyrotechnic Device Health and Safety Precautions .
Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .
Remove the steering column shrouds. Refer to: Steering Column Shrouds .

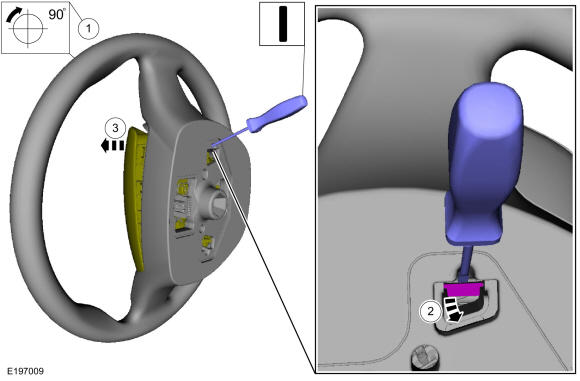

1. Turn the steering wheel clockwise through 90 degrees.
2. Pivot the spring clip to disengage it from the driver airbag. Use the General Equipment: Flat-Bladed Screwdriver
3. Detach the driver airbag.
Courtesy of FORD MOTOR COMPANY

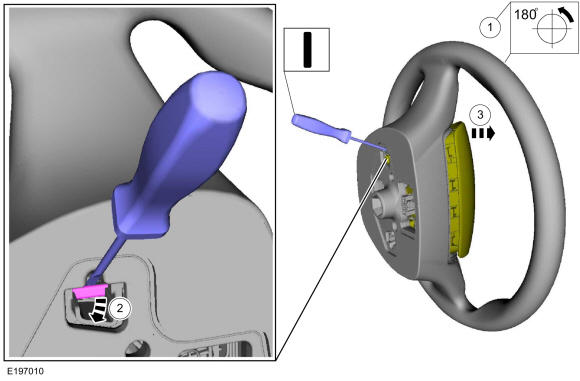

1. Turn the steering wheel counter-clockwise through 180 degrees.
2. Pivot the spring clip to disengage it from the driver airbag. Use the General Equipment: Flat-Bladed Screwdriver
3. Detach the driver airbag.
Courtesy of FORD MOTOR COMPANY

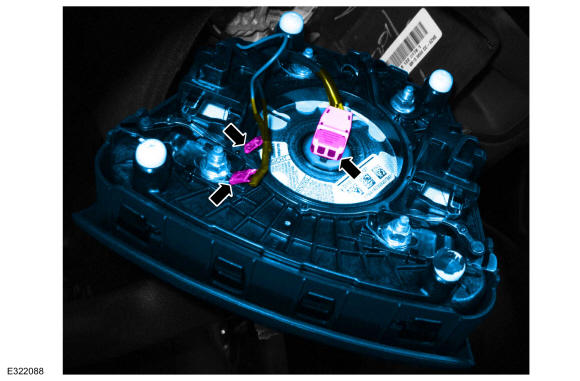

For a single stage driver airbag. Disconnect the electrical connectors and remove the driver airbag.

Courtesy of FORD MOTOR COMPANY

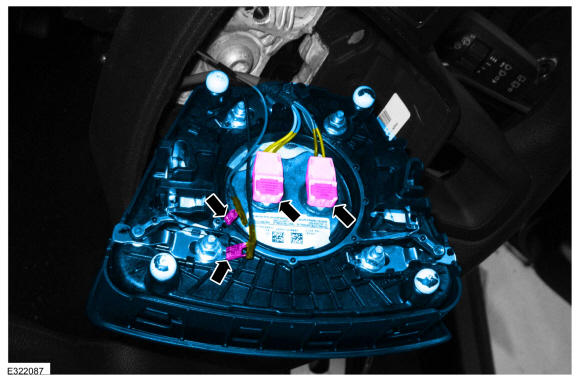

For a dual stage driver airbag. Disconnect the electrical connectors and remove the driver airbag.

Courtesy of FORD MOTOR COMPANY
