C-Pillar Side Impact Sensor: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: WARNING: The following procedure prescribes critical repair steps required for correct restraint system operation during a crash. Follow all notes and steps carefully. Failure to follow step instructions may result in incorrect operation of the restraint system and increases the risk of serious personal injury or death in a crash.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH shown, RH similar.

WARNING: WARNING: Before beginning any service procedure in this service information, refer to health and safety warnings in General Information. Failure to follow this instruction may result in serious personal injury.

Refer to: Pyrotechnic Device Health and Safety Precautions .
Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .

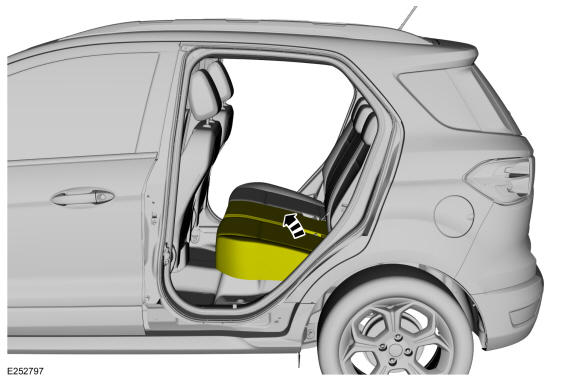

Position the rear seat cushion to the full forward position.

Courtesy of FORD MOTOR COMPANY

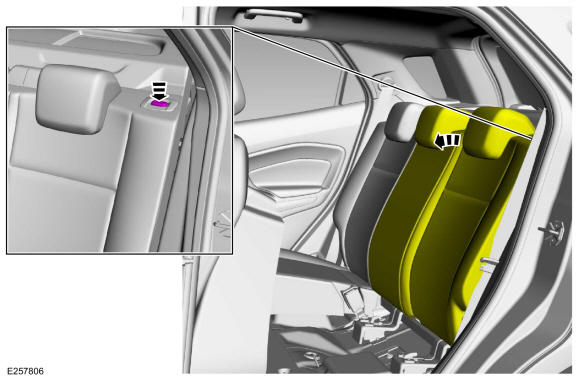

Lower the backrest.

Courtesy of FORD MOTOR COMPANY

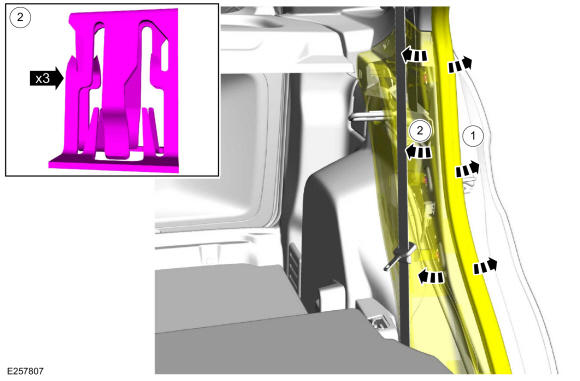

1. Position the rear door weather-strip aside from the lower C-pillar trim panel.
2. Release the clips and position the lower C-pillar trim panel away enough to access the side impact sensor.
Courtesy of FORD MOTOR COMPANY

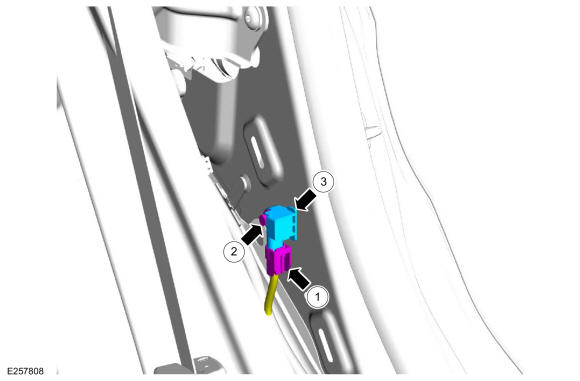

1. Disconnect the electrical connector.
2. Remove the bolt.
  Torque

  93 lb.in (10.5 Nm)
3. Remove the side impact sensor.

Courtesy of FORD MOTOR COMPANY
