Steering Wheel: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the driver air bag. Refer to: Driver Airbag .
NOTE: Make sure that the steering wheel lock is engaged.

NOTE: Make sure that the road wheels are in the straight ahead position.

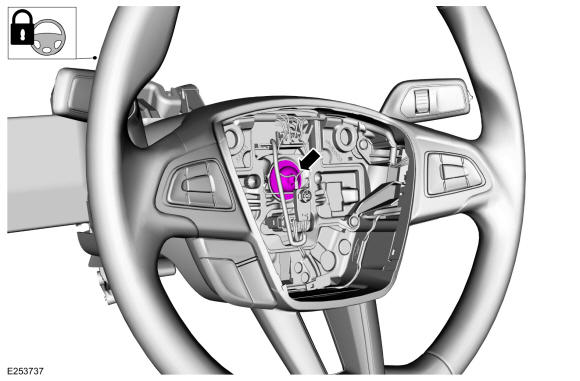

Remove the steering wheel bolt.

Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

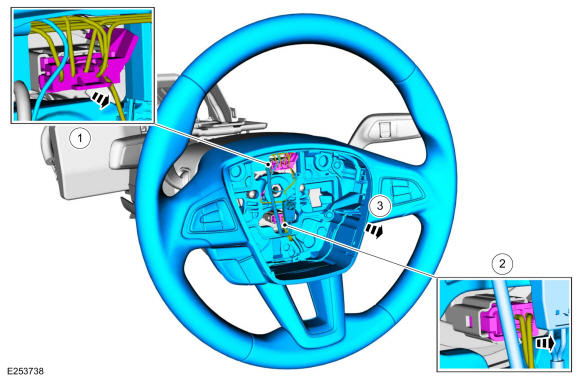

1. Disconnect the upper electrical connector.
2. Disconnect the lower electrical connector.
3. Remove the steering wheel.
Courtesy of FORD MOTOR COMPANY

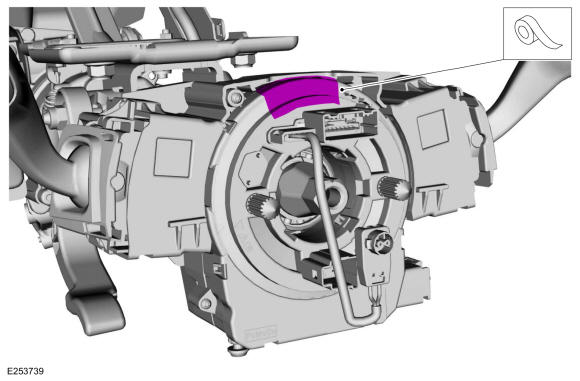

NOTE: Make sure that the clockspring rotor does not rotate.

NOTE: Make sure that the clockspring pins are not bent or damaged.

Secure the clockspring with adhesive tape. Use the General Equipment: Adhesive Tape

Courtesy of FORD MOTOR COMPANY
