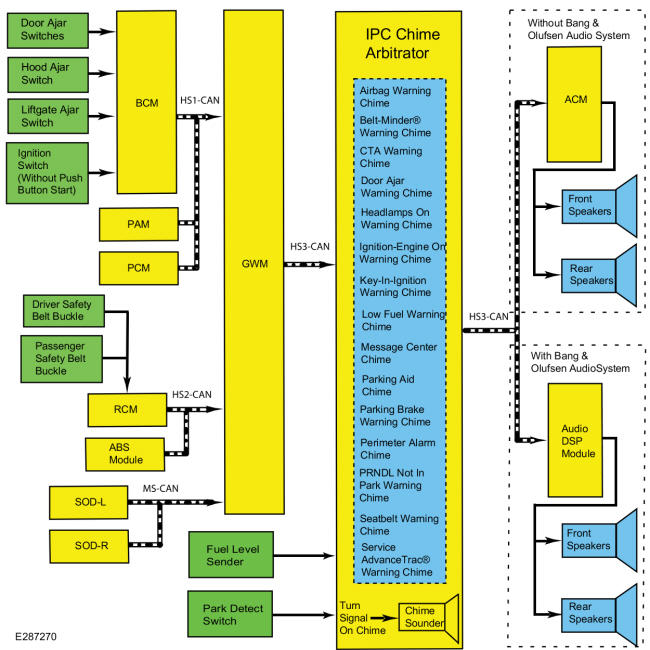

Except Base AM/FM Audio System

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
GFD328242Courtesy of FORD MOTOR COMPANY

3
