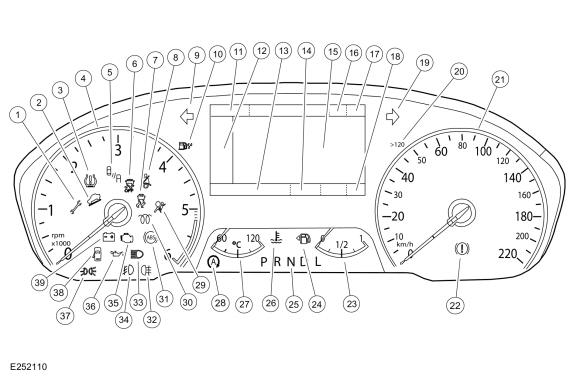

Mid-Level and High-Level IPC
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| 1 | Powertrain malfunction (wrench) indicator |
|---|---|
| 2 | Grade assist indicator |
| 3 | TPMS indicator |
| 4 | Tachometer |
| 5 | BLIS off indicator |
| 6 | Stabilty-traction control disabled (sliding car OFF icon) indicator |
| 7 | Stabilty-traction control (sliding car icon) indicator |
| 8 | Seatbelt warning indicator |
| 9 | LH turn indicator |
| 10 | Water-in-fuel indicator (diesel only) |
| 11 | Trip odometer mileage display area |
| 12 | Main message center menu |
| 13 | Rotating RTT display area Cruise control RTT indicator |
| 14 | Odometer display |
| 15 | Main message center display area |
| 16 | Frost RTT indicator |
| 17 | Outside Air Temperature (OAT) display |
| 18 | Compass display |
| 19 | RH turn indicator |
| 20 | Overspeed indicator (Gulf Coast Countries [GCC] only) |
| 21 | Speedometer |
| 22 | Brake warning indicator |
| 23 | Fuel gauge |
| 24 | Low fuel indicator |
| 25 | PRNDL display |
| 26 | Engine over-temperature warning indicator |
| 27 | Temperature gauge |
| 28 | Auto stop-start indicator (if equipped) |
| 29 | Airbag warning indicator |
| 30 | Wait to start indicator (diesel and E100 only) |
| 31 | ABS indicator |
| 32 | Rear fog lamp indicator (if equipped) |
| 33 | High beam indicator |
| 34 | Front fog lamp indicator |
| 35 | MIL |
| 36 | Low oil pressure warning indicator |
| 37 | Lights on (side marker position) indicator |
| 38 | Door ajar indicator |
| 39 | Charging system warning indicator |
