Base IPC
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

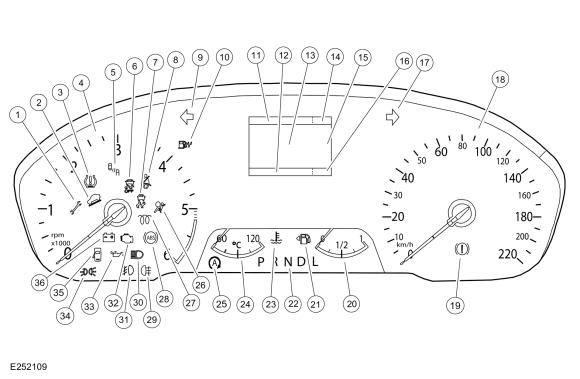

| 1 | Powertrain malfunction (wrench) indicator |
|---|---|
| 2 | Grade assist indicator |
| 3 | TPMS indicator |
| 4 | Tachometer |
| 5 | BLIS off indicator |
| 6 | Stabilty-traction control disabled (sliding car OFF icon) indicator |
| 7 | Stabilty-traction control (sliding car icon) indicator |
| 8 | Seatbelt warning indicator |
| 9 | LH turn indicator |
| 10 | Water-in-fuel indicator (diesel only) |
| 11 | Message center menu display |
| 12 | Trip odometer mileage display area |
| 13 | Main message center display area Odometer display area |
| 14 | Outside Air Temperature (OAT) display |
| 15 | Sub-menu location identification |
| 16 | Compass display Rotating RTT display area Cruise control RTT indicator Frost RTT indicator Upshift/downshift RTT indicator |
| 17 | RH turn indicator |
| 18 | Speedometer |
| 19 | Brake warning indicator |
| 20 | Fuel gauge |
| 21 | Low fuel indicator |
| 22 | PRNDL display |
| 23 | Engine over-temperature warning indicator |
| 24 | Temperature gauge |
| 25 | Auto stop-start indicator (if equipped) |
| 26 | Airbag warning indicator |
| 27 | Wait to start indicator (diesel and E100 only) |
| 28 | ABS indicator |
| 29 | Rear fog lamp indicator (if equipped) |
| 30 | High beam indicator |
| 31 | Front fog lamp indicator |
| 32 | MIL |
| 33 | Low oil pressure warning indicator |
| 34 | Lights on (side marker position) indicator |
| 35 | Door ajar indicator |
| 36 | Charging system warning indicator |
NOTE:
The diesel IPC is shown. The gas and North America IPC is similar.
The mid-level and high-level Instrument Panel Clusters (IPCs) appear basically the same except the mid-level IPC uses a monochromatic message center display and the high-level IPC uses a color message center display.
