Spare Wheel Mounting Bracket: Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.

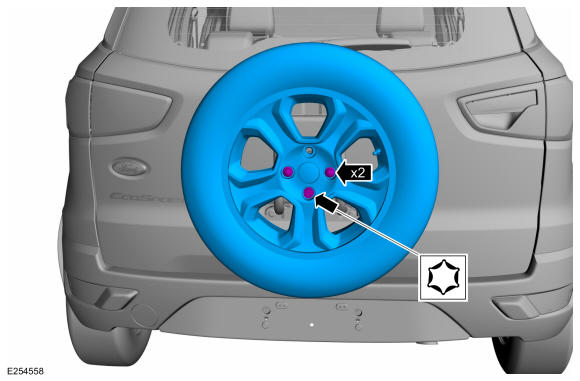

- Remove the bolts and the spare wheel and tire.
Torque: 41 lb.ft (55 Nm)
- Remove the liftgate trim panel. Refer to: Liftgate Trim Panel .

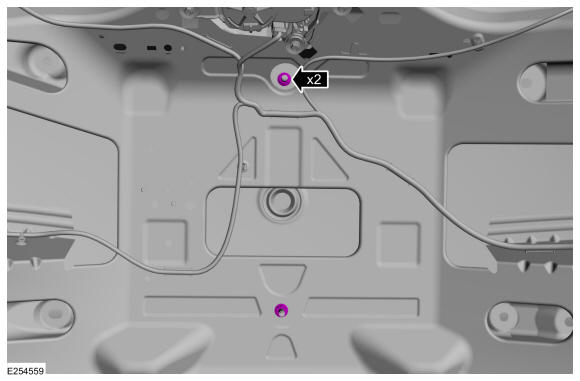

- Remove the spare wheel mounting bracket nuts.
Torque: 177 lb.in (20 Nm)

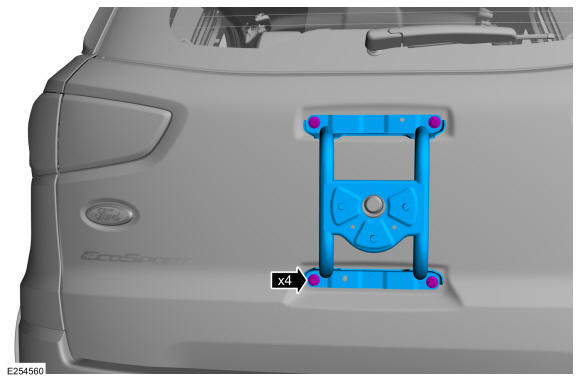

- Remove the bolts and the spare wheel mounting bracket.
Torque: 177 lb.in (20 Nm)
