Removal And Installation: Liftgate: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

NOTE: Removal steps in this procedure may contain installation details.

Open the liftgate.

Courtesy of FORD MOTOR COMPANY
Remove the LH loadspace trim panel. Refer to: Loadspace Trim Panel .

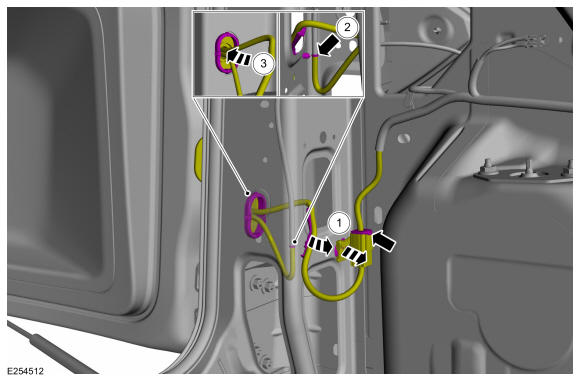

1. Disconnect the electrical connector and detach the wire harness retainers.
2. Disconnect the rear washer hose.
3. Route the liftgate wiring harness through the body.
Courtesy of FORD MOTOR COMPANY

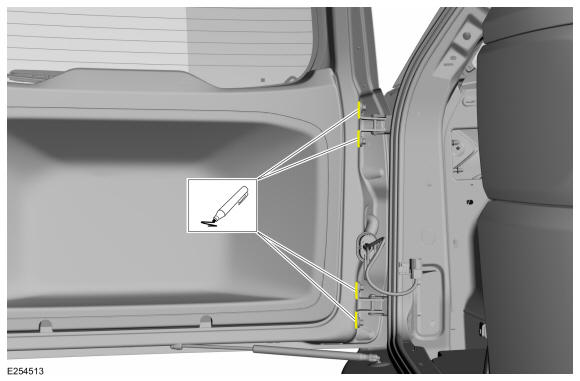

Mark the location of the liftgate hinge bolts.

Courtesy of FORD MOTOR COMPANY

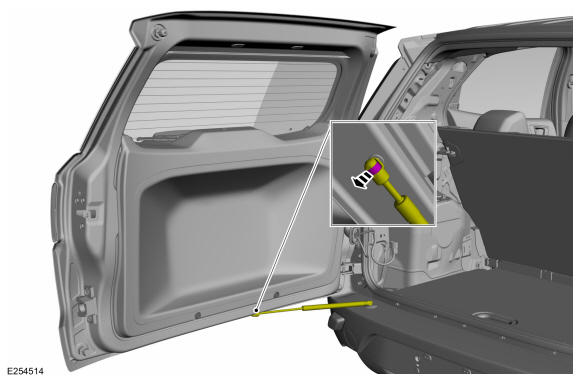

Remove the clip holding the liftgate strut and position aside.

Courtesy of FORD MOTOR COMPANY

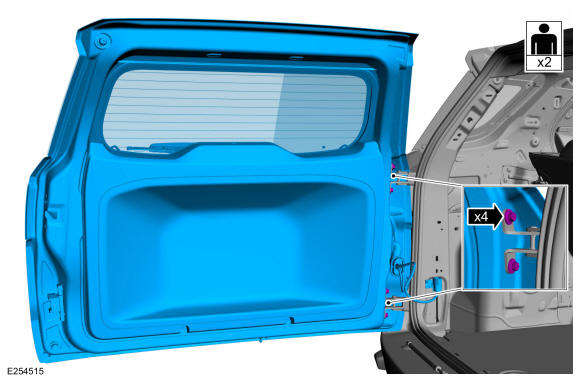

NOTE: This step requires the aid of another technician.

Remove the bolts and the liftgate.

Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
