Liftgate Strut: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

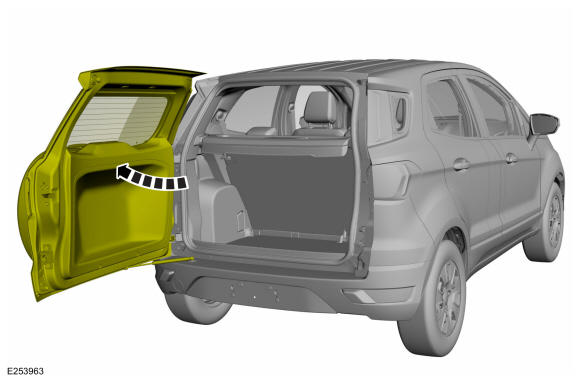

  1. Open the liftgate.
    GFD328654Courtesy of FORD MOTOR COMPANY

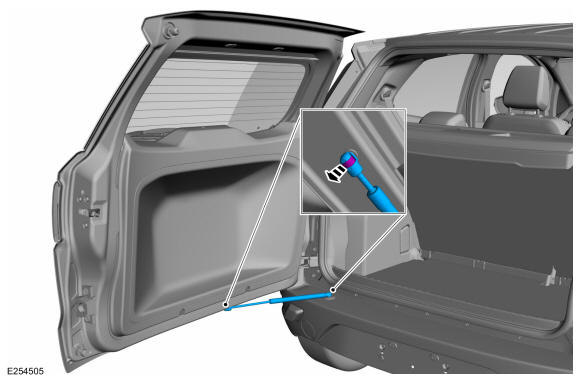

  2. Remove the liftgate strut.
GFD328692Courtesy of FORD MOTOR COMPANY
