Fuel Filler Door Assembly: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: The fuel filler door assembly is damaged during the removal process and requires a new fuel filler door assembly installed.

Remove the fuel filler door. Refer to: Fuel Filler Door .
Remove the fuel tank filler pipe. Refer to: Fuel Tank Filler Pipe . Refer to: Fuel Tank Filler Pipe .

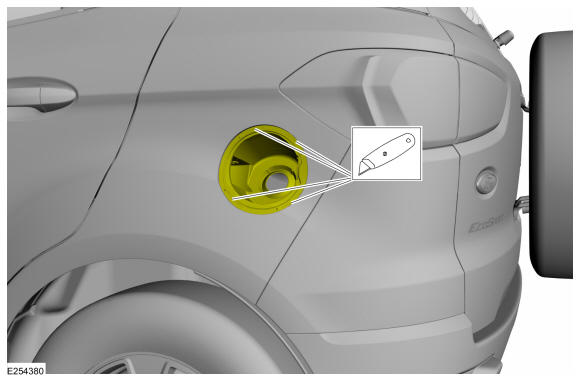

Using a knife, slice the holes in the indicated areas. Use the General Equipment: Knife

Courtesy of FORD MOTOR COMPANY

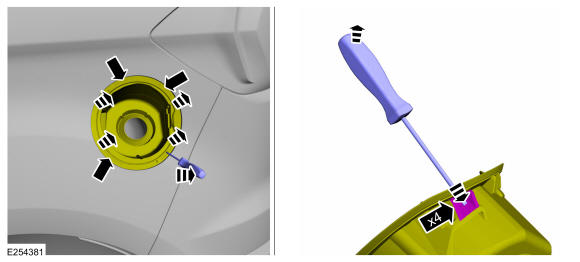

Insert the screwdriver and release the clips while pulling the fuel filler door housing away from the vehicle. Use the General Equipment: Flat Headed Screw Driver

Courtesy of FORD MOTOR COMPANY
NOTE: Clearance is limited. When all four clips release, the fuel filler door housing can be rotated.

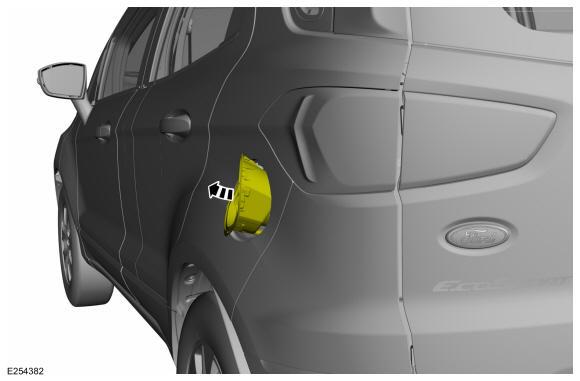

Rotate the fuel filler door housing.

Courtesy of FORD MOTOR COMPANY

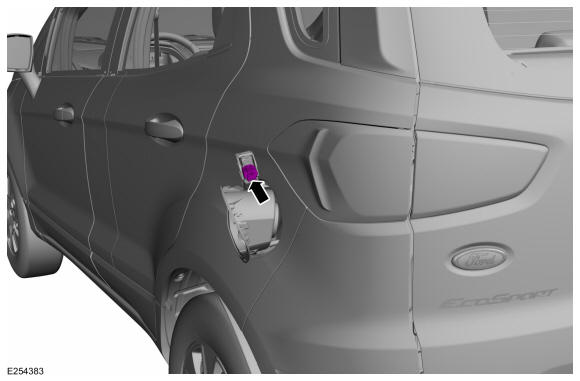

Disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY

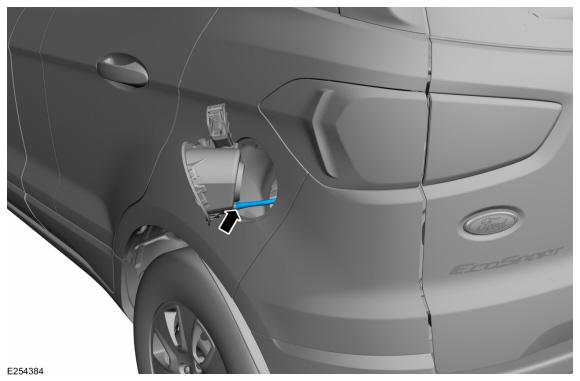

Remove the drain tube.

Courtesy of FORD MOTOR COMPANY

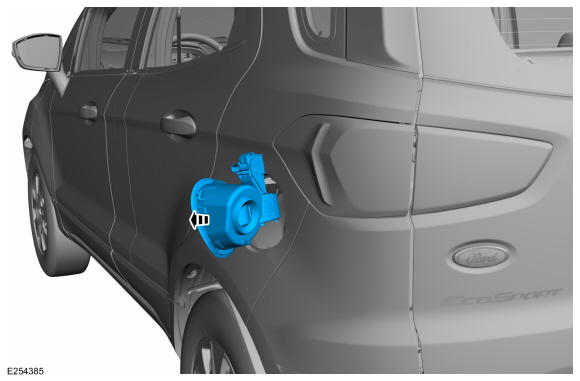

Pull the fuel filler door housing away from the vehicle and remove.
