Front Door Check Arm: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown, RH side similar.

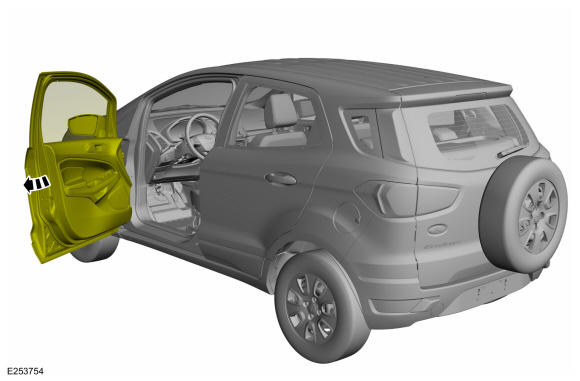

Open the front door.

Courtesy of FORD MOTOR COMPANY

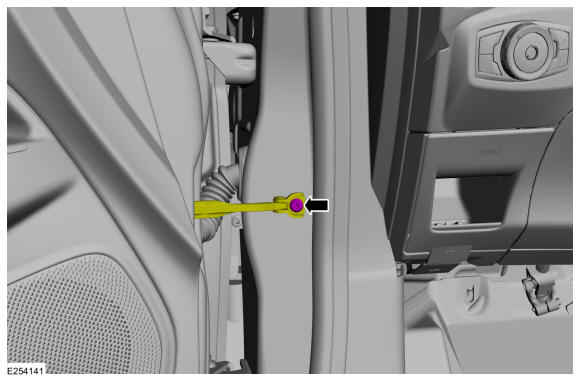

Remove the check arm bolt.
Torque: 17 lb.ft (23 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the front door trim panel. Refer to: Front Door Trim Panel .
NOTE: Door removed from vehicle for clarity.

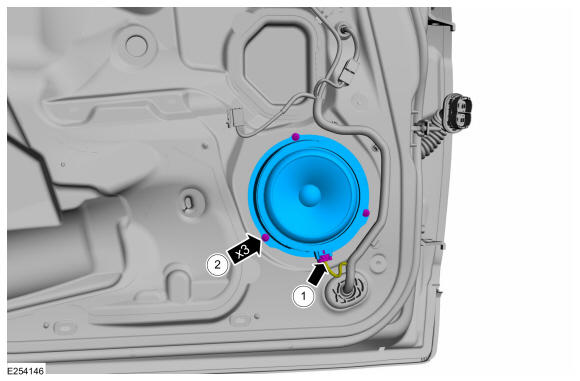

Remove the front door speaker.
1. Disconnect the electrical connector.
2. Remove the bolts and the speaker.
  Torque: 12 lb.in (1.3 Nm)
Courtesy of FORD MOTOR COMPANY
NOTE: Door removed from vehicle for clarity.

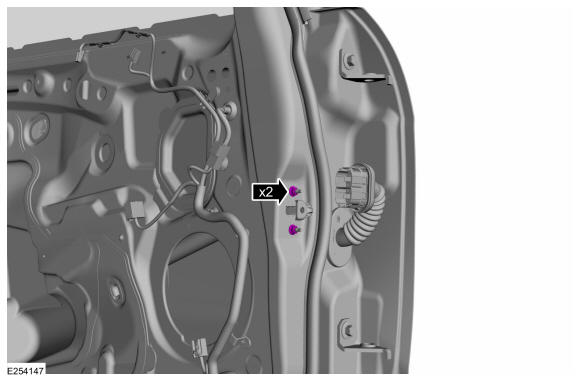

Remove the front door check arm nuts.

Torque: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Door removed from vehicle for clarity.

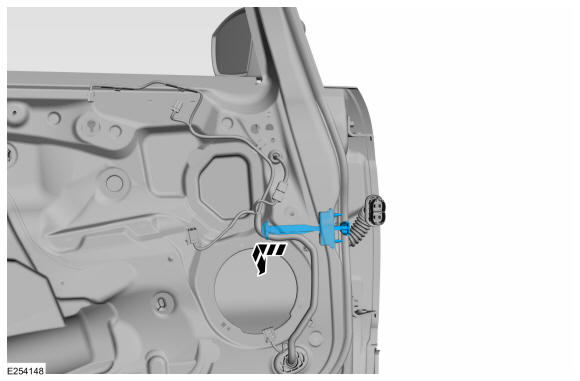

Remove the front door check arm assembly.

Courtesy of FORD MOTOR COMPANY
