Steering Column Shrouds: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

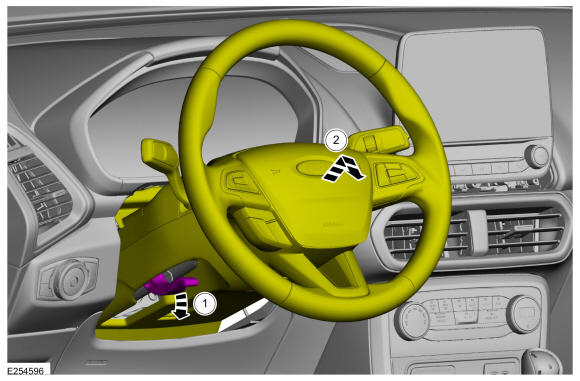

1. Lower the steering column adjustment lock.
2. Fully extend and lower the steering column.
Courtesy of FORD MOTOR COMPANY

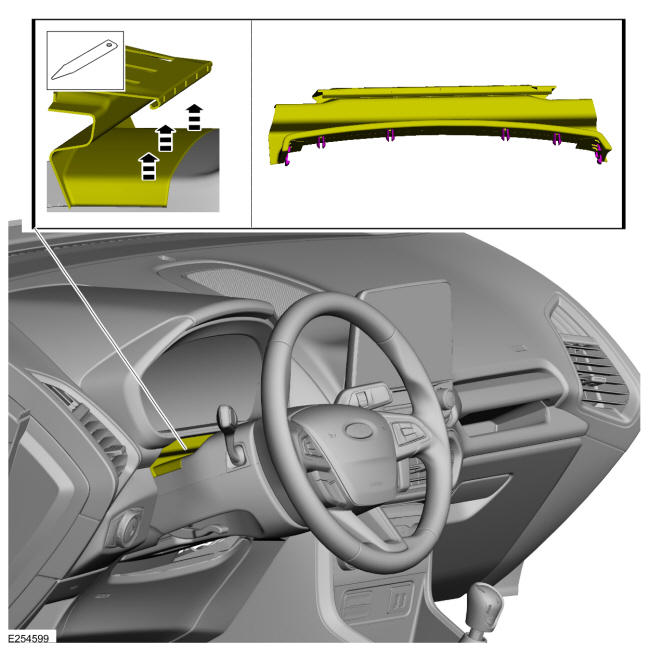

Release the tabs and disconnect the gap hider from the upper steering column shroud. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY
Release the upper steering column shroud front clips.

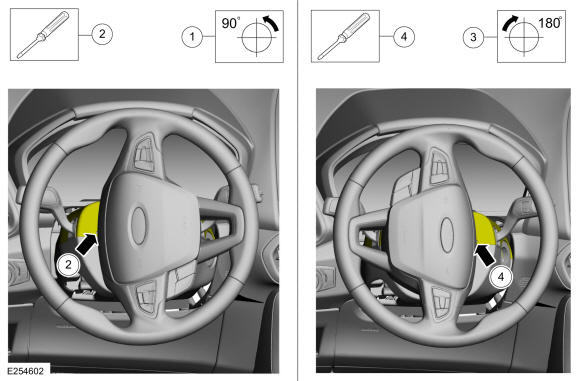

1. Rotate the steering wheel 90 degrees to the left.
2. Release the LH tab. Use the General Equipment: Flat-Bladed Screwdriver
3. Rotate the steering wheel 180 degrees to the right.
4. Release the RH tab. Use the General Equipment: Flat-Bladed Screwdriver
Courtesy of FORD MOTOR COMPANY

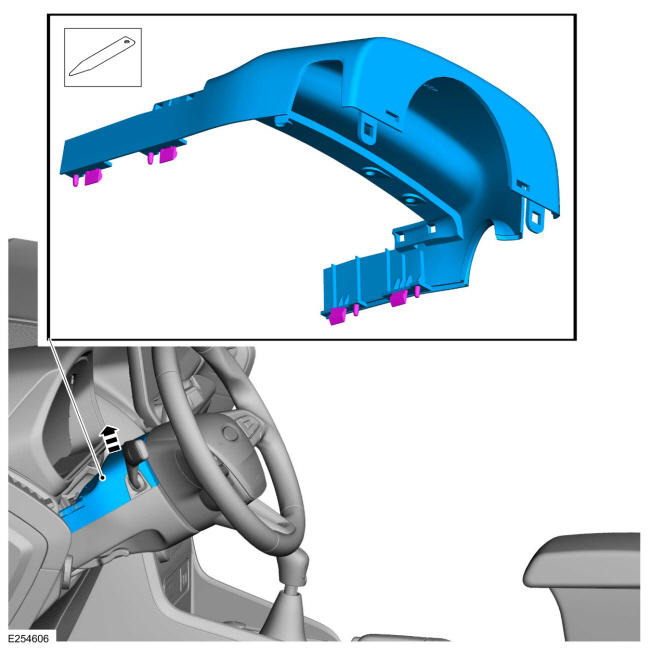

Release the tabs and remove the upper steering column shroud. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

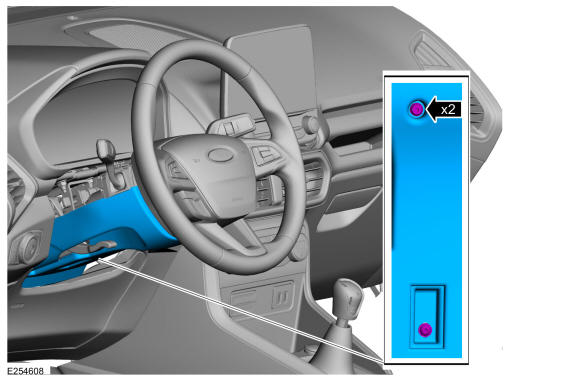

Remove the screws and the lower steering column shroud.

Courtesy of FORD MOTOR COMPANY
