Loadspace Trim Panel: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

NOTE: RH shown, LH similar.

NOTE: Removal steps in this procedure may contain installation details.

Remove the D-pillar trim panel. Refer to: D-Pillar Trim Panel .

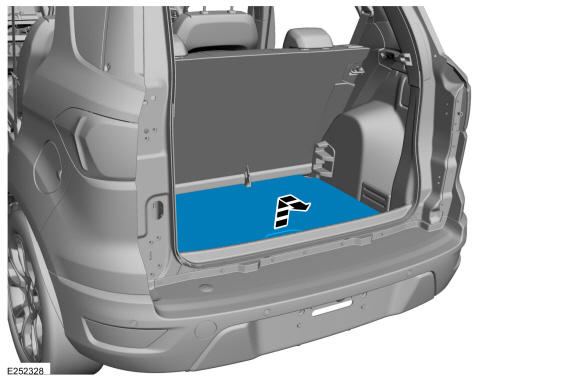

Remove the luggage compartment floor cover.

Courtesy of FORD MOTOR COMPANY

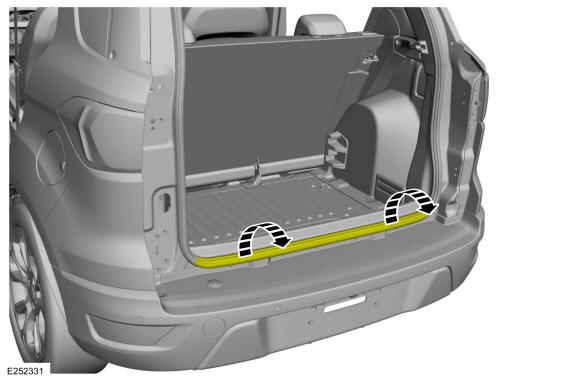

Position the liftgate weatherstrip aside.

Courtesy of FORD MOTOR COMPANY

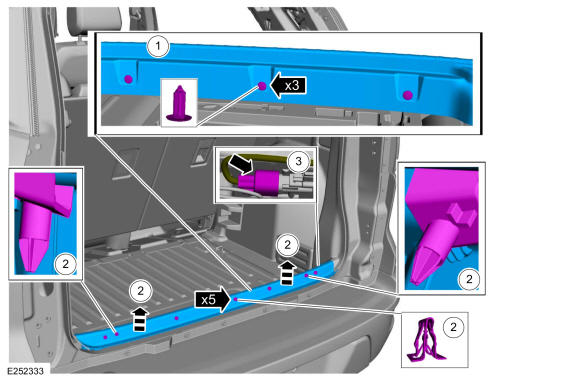

Remove the load compartment scuff plate trim panel.
1. Remove the pin-type retainers.
2. Release the clips and the locator pins.
3. Disconnect the keyless entry rear antenna electrical connector.
Courtesy of FORD MOTOR COMPANY

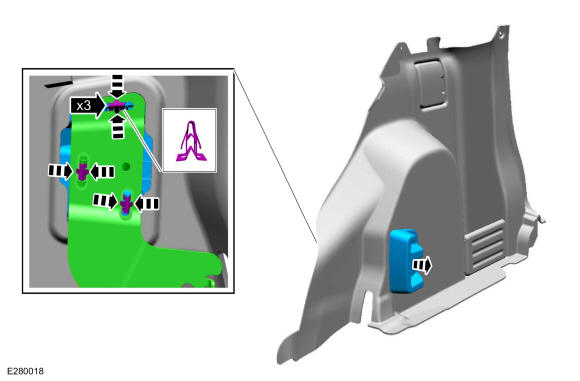

Position the corner of the loadspace trim panel aside.

Courtesy of FORD MOTOR COMPANY

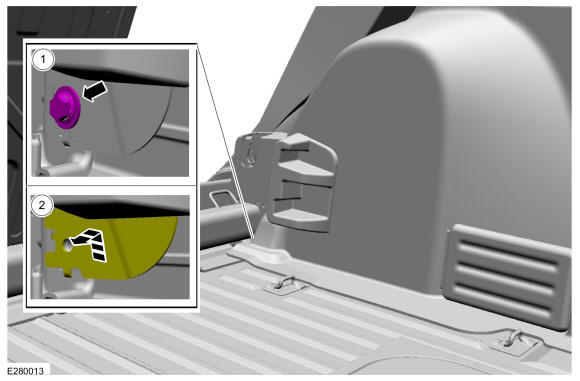

Disconnect the auxiliary floor support from the body.
1. Remove the auxiliary floor support bolt.
  Torque: 35 lb.ft (47.5 Nm)
2. Lift upward and outward on the auxiliary floor support.
Courtesy of FORD MOTOR COMPANY

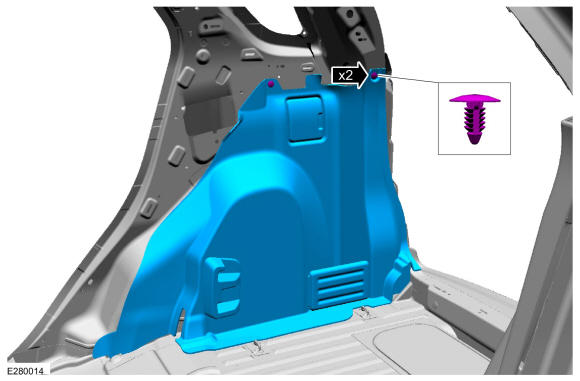

Remove the pin-type retainers and the loadspace trim panel.

Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

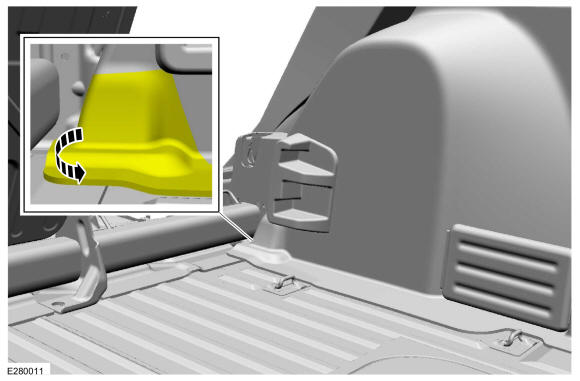

Release the clips and remove the auxiliary floor support cover and support.
