Removal And Installation: Headliner: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

Remove the following items:
1. On both sides. Remove the A-pillar trim panel. Refer to: A-Pillar Trim Panel .
2. On both sides. Remove the B-pillar trim panel. Refer to: B-Pillar Trim Panel .
3. On both sides. Remove the D-pillar trim panel. Refer to: D-Pillar Trim Panel .
4. Remove the overhead console. Refer to: Overhead Console .

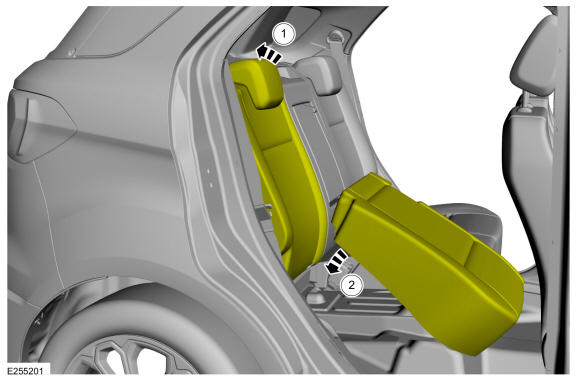

On both sides. Position the rear seat in the upright position.
1. Position the rear seat backrest in the full upright position.
2. Position the rear seat cushion in the normal position.
Courtesy of FORD MOTOR COMPANY

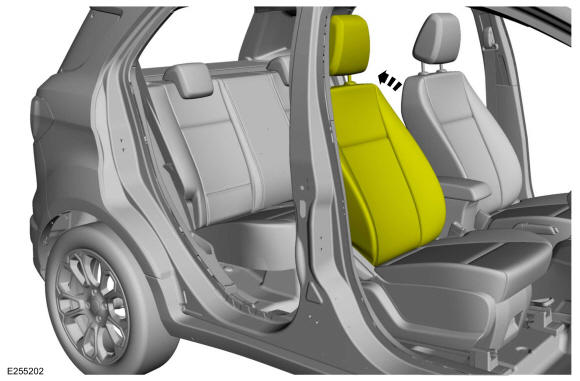

On both sides. Fully recline the front seat backrest.

Courtesy of FORD MOTOR COMPANY

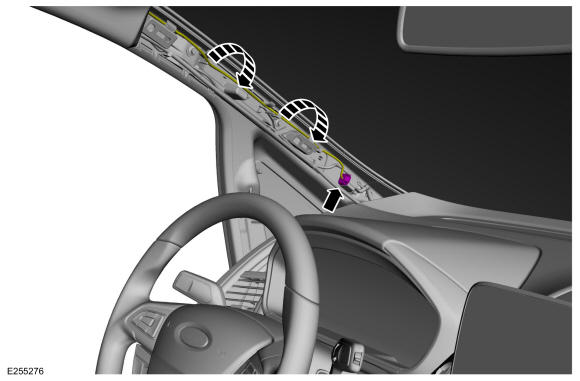

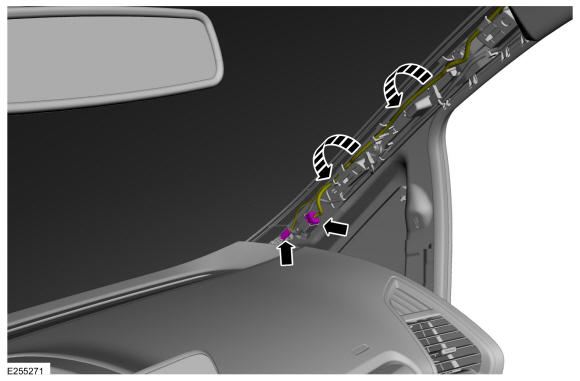

On RH side. Disconnect the electrical connectors and position the headliner wiring harness aside.

Courtesy of FORD MOTOR COMPANY
On LH side. Disconnect the electrical connector and position the headliner wiring harness aside.

Courtesy of FORD MOTOR COMPANY

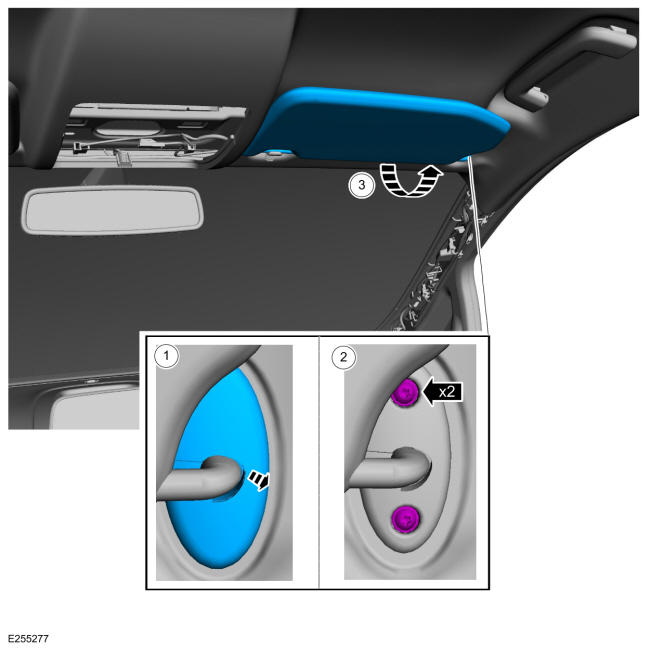

On both sides. Remove the sunvisor.
1. Remove the sun visor cover.
2. Remove the screws.
3. Rotate outward to remove the sun visor.
Courtesy of FORD MOTOR COMPANY

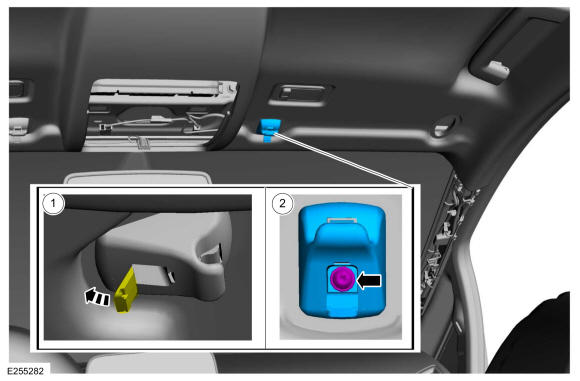

On both sides. Remove the sun visor clip.
1. Open up the sun visor clip cover.
2. Remove the screw.
Courtesy of FORD MOTOR COMPANY

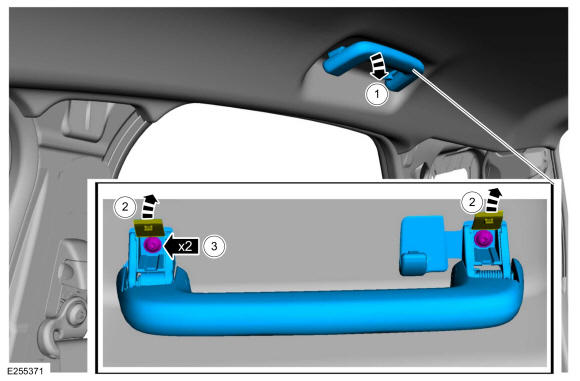

If equipped, on RH side. Remove the front assist handle.
1. Position the front assist handle down.
2. Open the covers.
3. Remove the screws.
Courtesy of FORD MOTOR COMPANY
If equipped, on both sides. Remove the rear assist handle.
1. Position the rear assist handle down.
2. Open the covers.
3. Remove the screws.
Courtesy of FORD MOTOR COMPANY

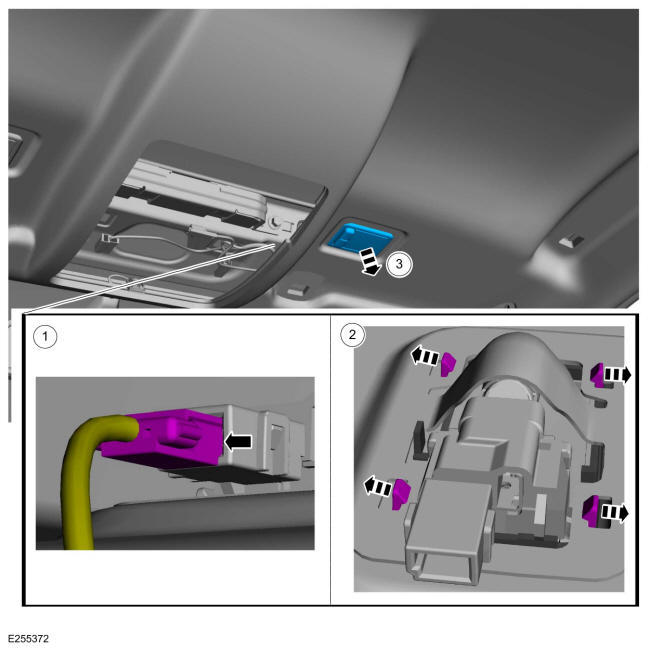

On both sides. Remove the interior front lamp.
1. Disconnect the electrical connector.
2. Release the tabs.
3. Pull downward to remove.
Courtesy of FORD MOTOR COMPANY

Vehicles with autolamps and rain sensor

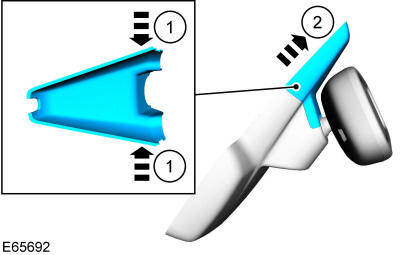

Remove rear view mirror upper cover.
1. Pressing inward, release the side tabs.
2. Sliding toward the rear of the vehicle to remove.
Courtesy of FORD MOTOR COMPANY

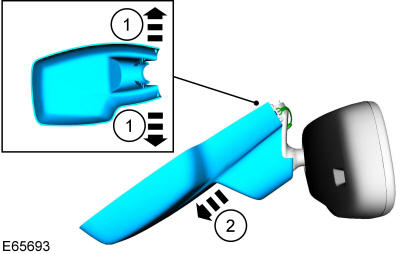

Remove the rear view mirror lower cover.
1. Pulling outward, release the side tabs.
2. Sliding toward the front of the vehicle, to remove.
Courtesy of FORD MOTOR COMPANY

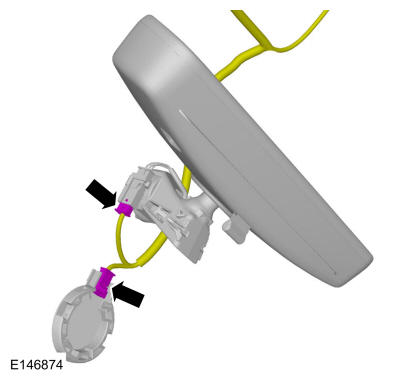

Disconnect the rain senor and rear view mirror electrical connectors.

Courtesy of FORD MOTOR COMPANY

Vehicles with roof opening panel

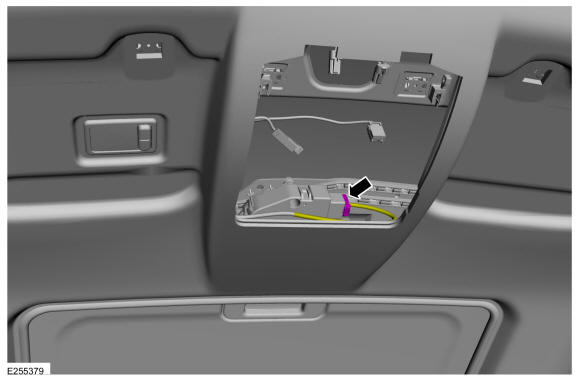

Disconnect the roof opening panel motor electrical connector.

Courtesy of FORD MOTOR COMPANY

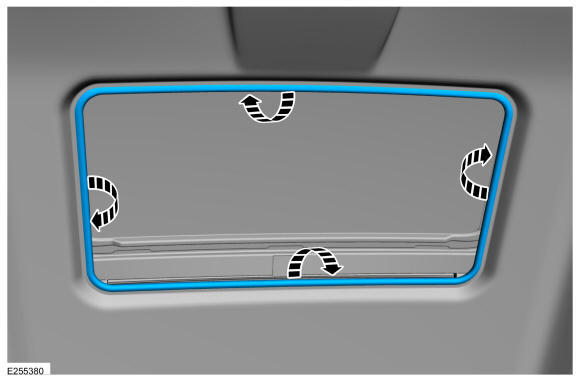

Remove the roof opening panel trim ring.

Courtesy of FORD MOTOR COMPANY

All vehicles

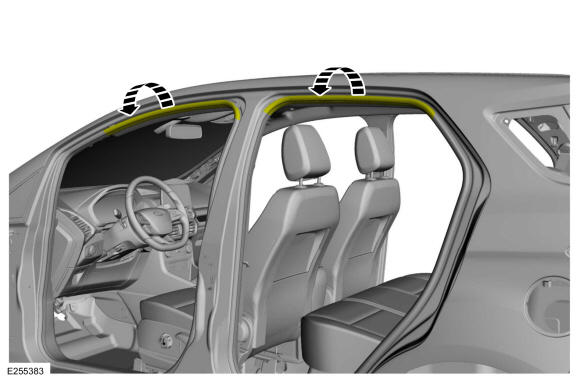

On both sides. Position the front and rear door weatherstrip aside.

Courtesy of FORD MOTOR COMPANY

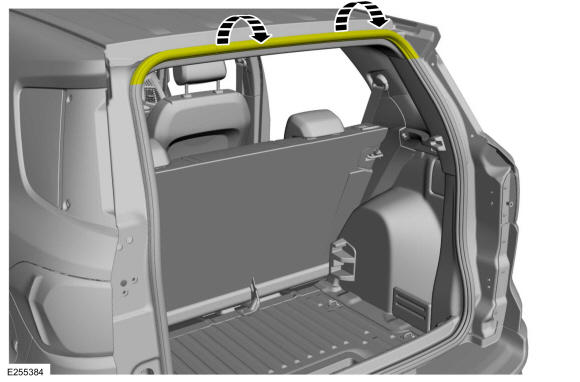

Position the liftgate weatherstrip aside.

Courtesy of FORD MOTOR COMPANY

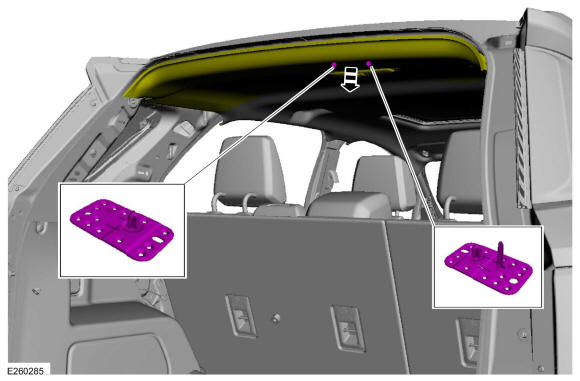

Release the rear clips.

Courtesy of FORD MOTOR COMPANY

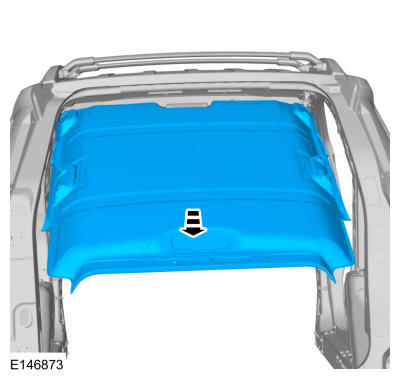

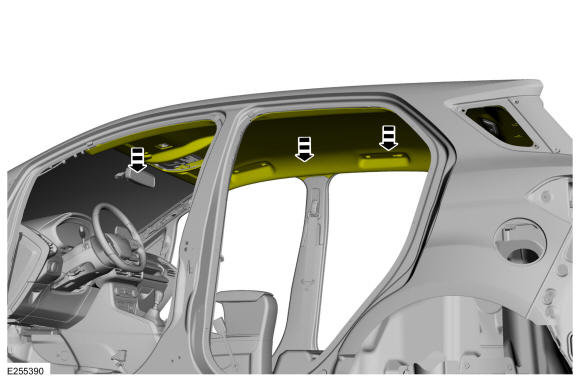

Lower the headliner.

Courtesy of FORD MOTOR COMPANY
Remove the headliner.

Courtesy of FORD MOTOR COMPANY
