D-Pillar Trim Panel: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

NOTE: RH shown, LH similar.

NOTE: Removal steps in this procedure may contain installation details.

Remove the C-pillar lower trim panel. Refer to: C-Pillar Lower Trim Panel .

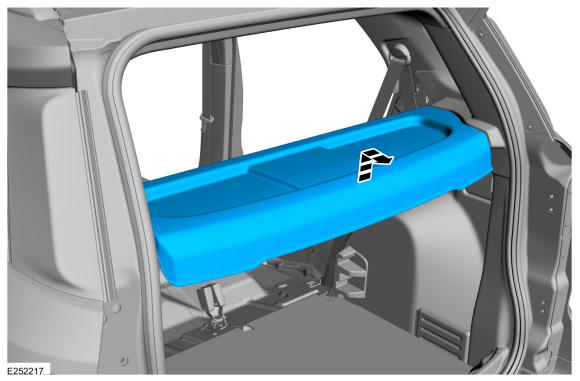

If equipped. Remove the storage tray.

Courtesy of FORD MOTOR COMPANY

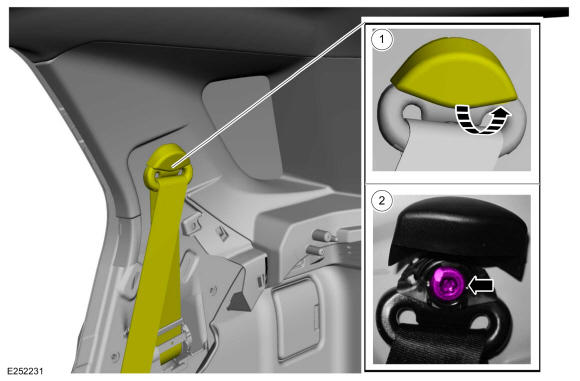

Position rear outer seatbelt aside.
1. NOTE: D-ring bolt cover does not fully remove from the seatbelt.

  Position D-ring bolt cover up.
2. Remove the D-ring bolt.
  Torque: 30 lb.ft (40 Nm)
Courtesy of FORD MOTOR COMPANY

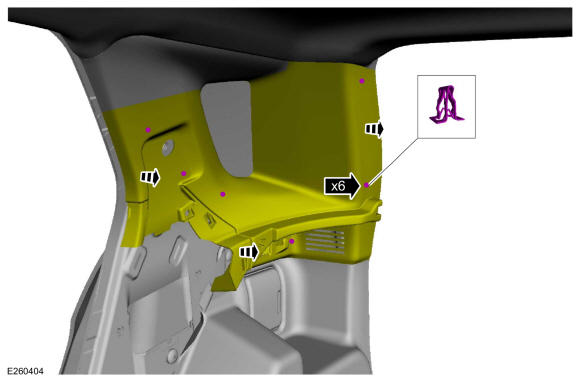

Release the D-pillar clips.

Courtesy of FORD MOTOR COMPANY

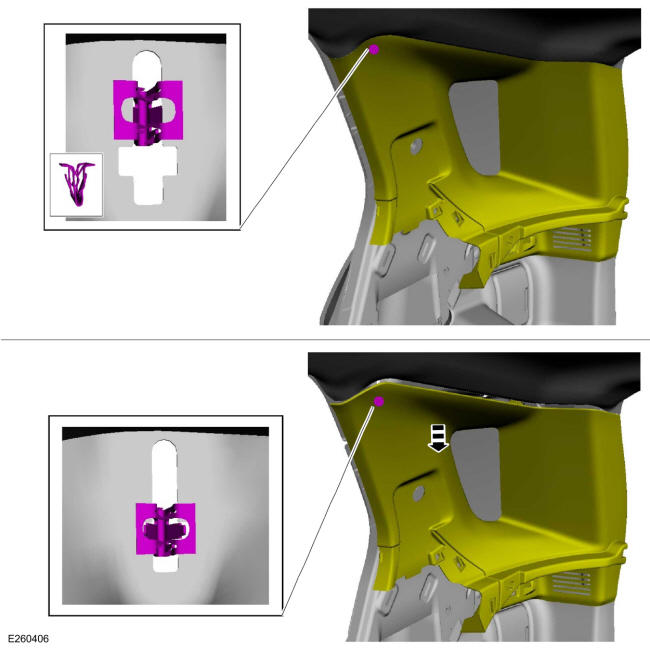

NOTE: The D-pillar trim panel must be positioned downward to allow the upper clip to release correctly. Failure to follow this direction may cause damage to the D-pillar trim panel.

Slide the D-pillar trim panel down, aligning the upper clip to the slot in the sheet metal.

Courtesy of FORD MOTOR COMPANY

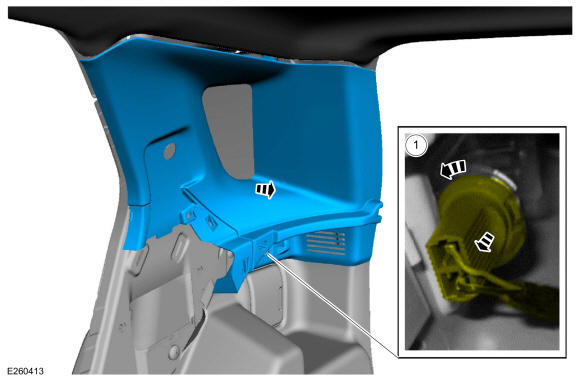

Remove the D-pillar trim panel.
1. RH side only. Rotate the socket and position the interior loadspace lamp aside.

Courtesy of FORD MOTOR COMPANY
