C-Pillar Lower Trim Panel: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

NOTE: RH shown, LH similar.

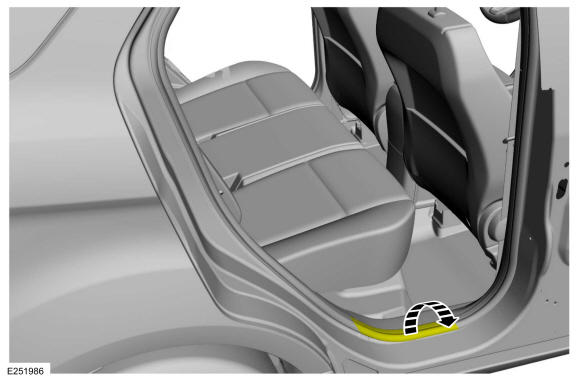

Position the rear door weatherstrip aside.

Courtesy of FORD MOTOR COMPANY

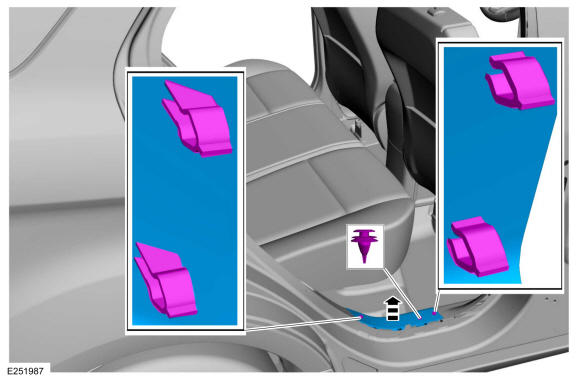

Release the clips and remove the rear door scuff plate trim panel.

Courtesy of FORD MOTOR COMPANY

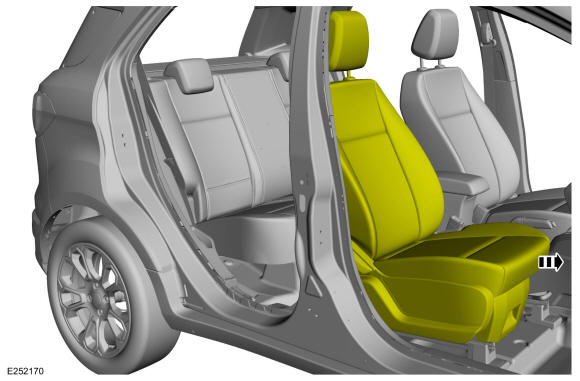

Position the front seat in the full forward position.

Courtesy of FORD MOTOR COMPANY

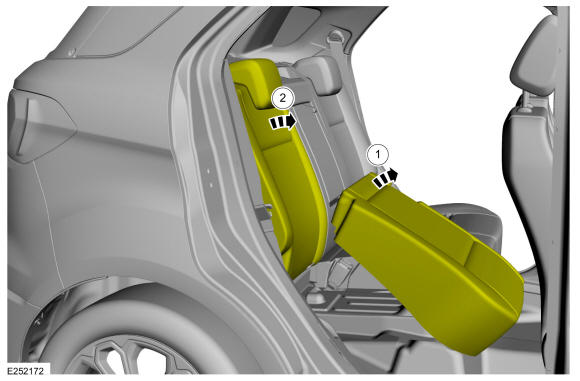

Position the rear seat in the full fold flat position.
1. Position the rear seat cushion in the full forward position.
2. Position the rear seat backrest in the full flat position.
Courtesy of FORD MOTOR COMPANY

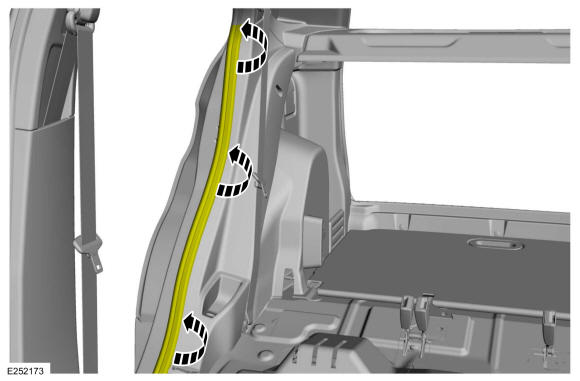

Position the rear door weatherstrip aside.

Courtesy of FORD MOTOR COMPANY

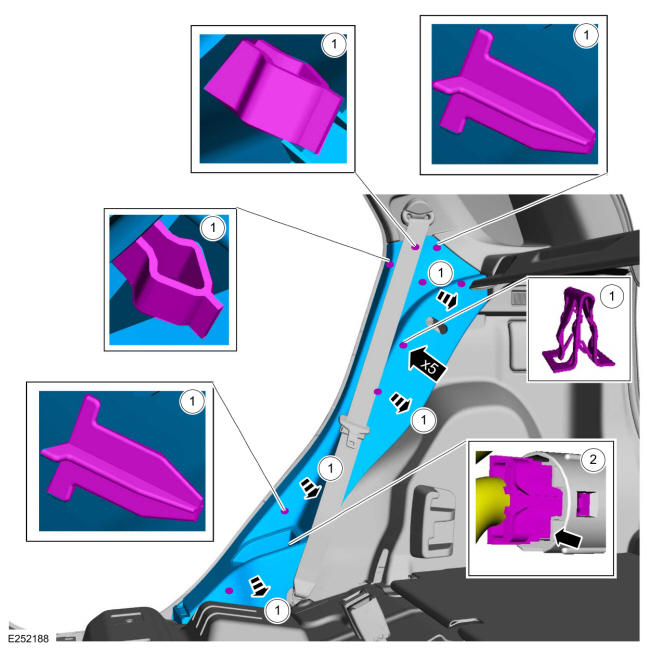

Remove the C-pillar lower trim panel.
1. Release the clips and the locator pins.
2. If equipped. Disconnect the power-point electrical connector.

Courtesy of FORD MOTOR COMPANY
