B-Pillar Trim Panel: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

NOTE: RH shown, LH similar.

NOTE: Removal steps in this procedure may contain installation details.

Upper and Lower B-Pillar Trim Panels

Position the front door weatherstrip aside.

Courtesy of FORD MOTOR COMPANY

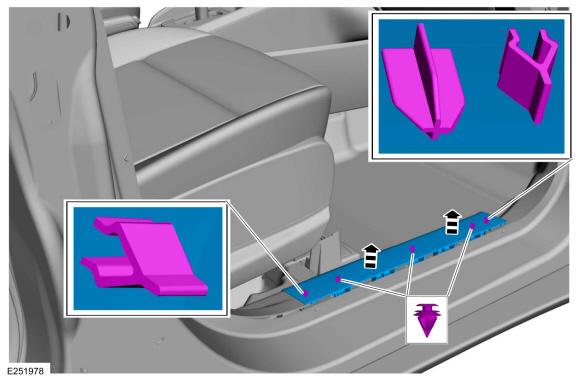

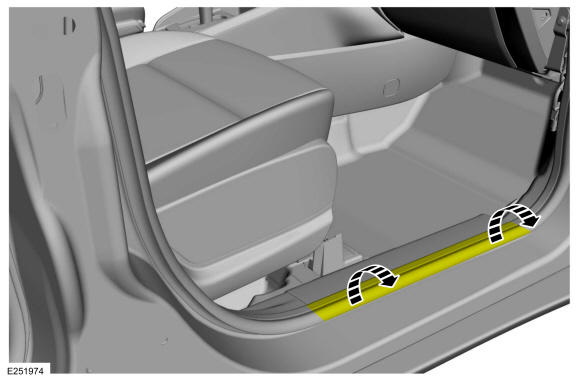

Release the clips and remove the front door scuff plate trim panel.

Courtesy of FORD MOTOR COMPANY
Position the rear door weatherstrip aside.

Courtesy of FORD MOTOR COMPANY
Release the clips and remove the rear door scuff plate trim panel.

Courtesy of FORD MOTOR COMPANY
NOTE: Front seat removed for clarity.

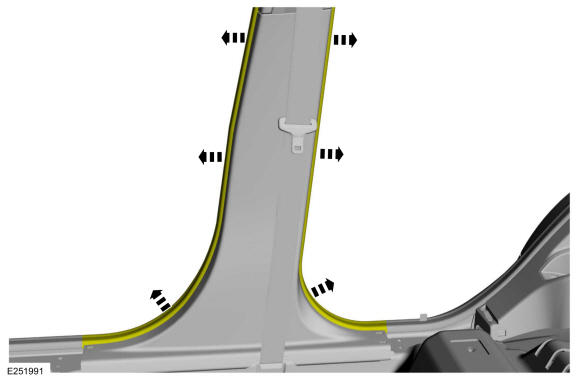

Position the front and rear door weatherstrip aside.

Courtesy of FORD MOTOR COMPANY

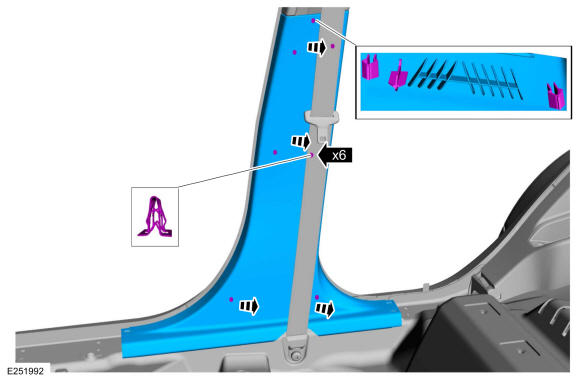

Release the clips and remove the lower B-pillar trim panel.

Courtesy of FORD MOTOR COMPANY

Upper B-Pillar Trim Panel

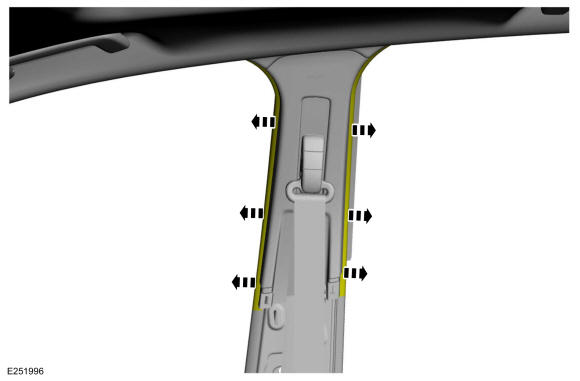

Position the front and rear door weatherstrip aside.

Courtesy of FORD MOTOR COMPANY

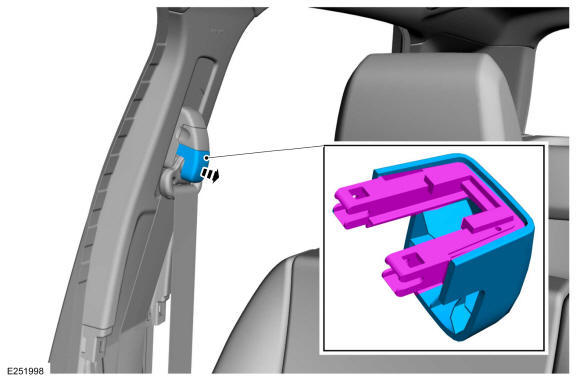

Pull straight off to release the retainers and remove the D-ring bolt cover.

Courtesy of FORD MOTOR COMPANY

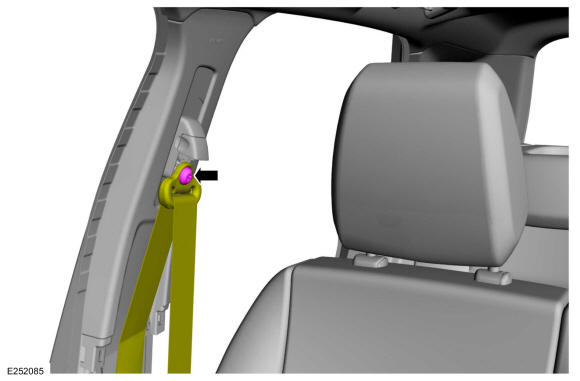

Remove the D-ring bolt and position the front seatbelt aside.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

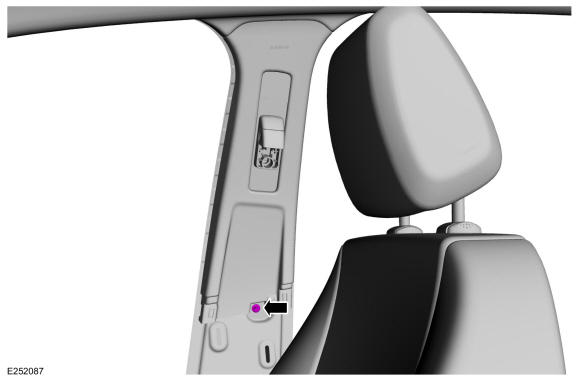

Remove the upper B-pillar trim panel bolt.
Torque: 53 lb.in (6 Nm)

Courtesy of FORD MOTOR COMPANY

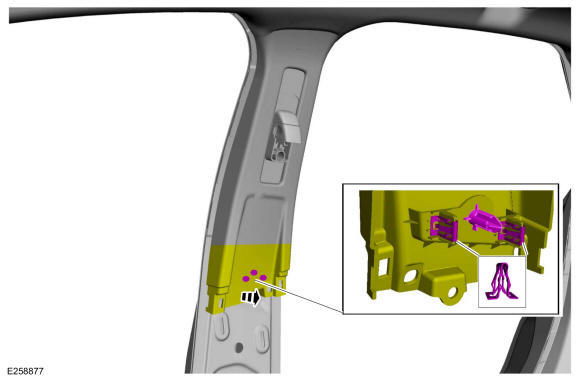

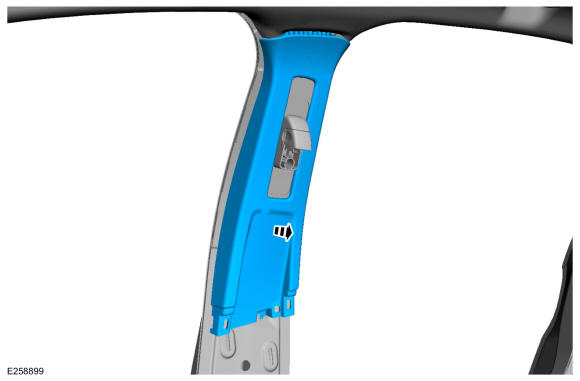

Release the upper B-pillar trim panel lower clips and locator pin.

Courtesy of FORD MOTOR COMPANY

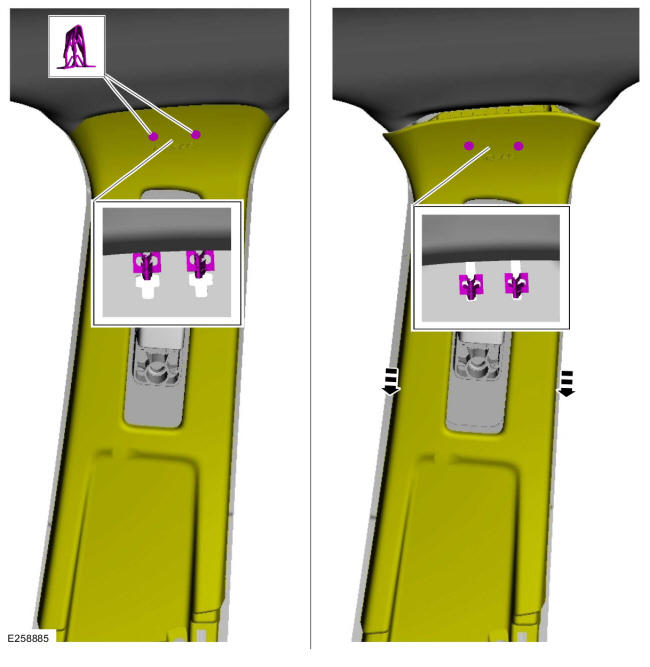

NOTE: The upper B-pillar trim panel must be positioned downward to allow the upper clips to release correctly. Failure to follow this direction may cause damage to the upper B-pillar trim panel.

Slide the upper B-pillar trim panel down, aligning the clips to the slots in the sheet metal.

Courtesy of FORD MOTOR COMPANY
Remove the upper B-pillar trim panel.

Courtesy of FORD MOTOR COMPANY
