A-Pillar Trim Panel: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

NOTE: RH shown, LH similar.

Position the front door weatherstrip aside.

Courtesy of FORD MOTOR COMPANY

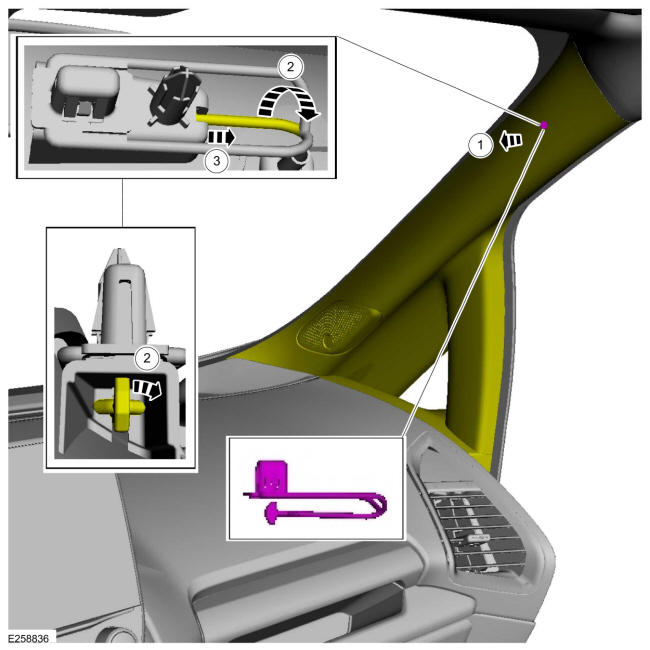

Disconnect the tether clip from the A-pillar trim panel.
1. Release the A-pillar trim panel clip from the tether clip.
2. Rotate the tether clip line to align end with opening.
3. Slide tether clip end out of the A-pillar trim panel.
Courtesy of FORD MOTOR COMPANY

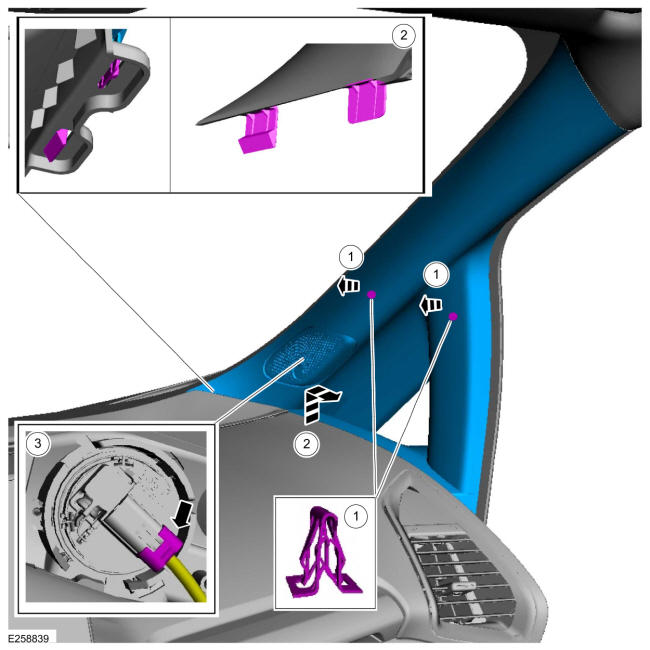

Remove the A-pillar trim panel.
1. Release the clips.
2. Lifting upward then rearward, release the lower tabs.
3. If equipped. Disconnect the speaker electrical connector.

Courtesy of FORD MOTOR COMPANY
