Overhead Console: Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

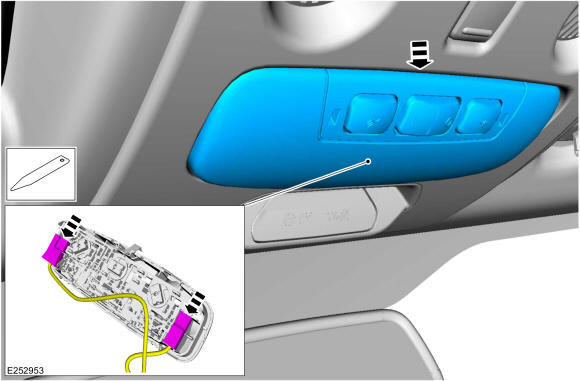

- Remove the switch panel.
- Disconnect the electrical connectors. Use the General Equipment: Interior Trim Remover
 Courtesy of FORD MOTOR COMPANY
|

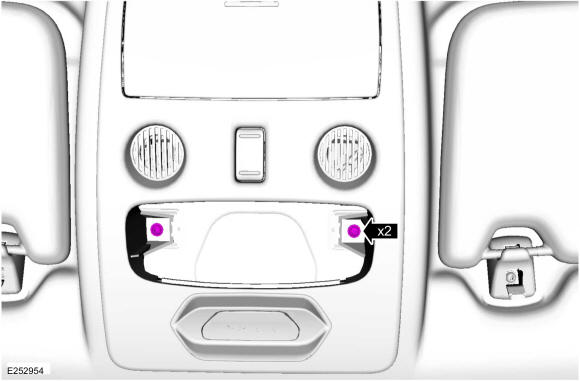

- Remove the screws.
 Courtesy of FORD MOTOR COMPANY
|

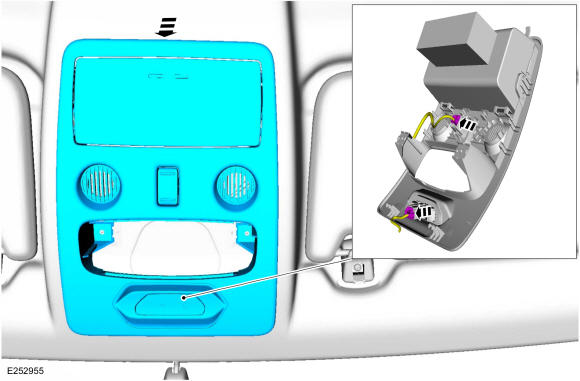

- Remove the overhead console.
- Disconnect the electrical connectors.
 Courtesy of FORD MOTOR COMPANY
|
