Glove Compartment: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

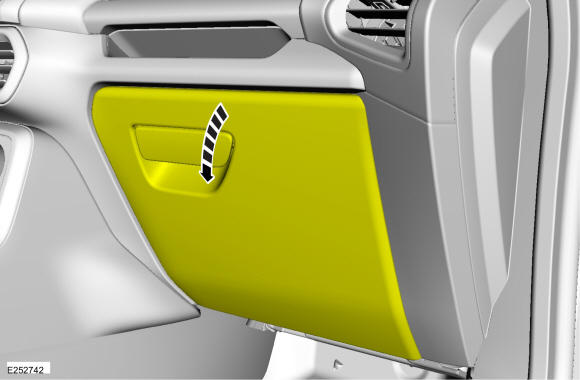

  1. Open the glove compartment.
    GFD329077Courtesy of FORD MOTOR COMPANY

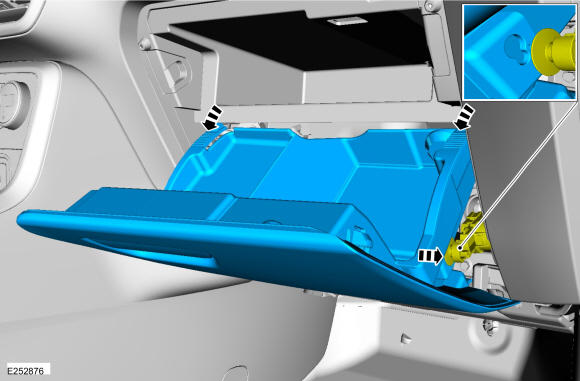

  2. Release the glove compartment stops and remove the dampener.
    GFD329078Courtesy of FORD MOTOR COMPANY

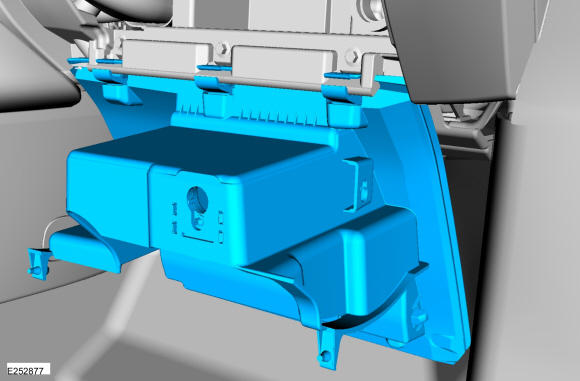

  3. Fully lower and remove the glove compartment.
GFD329079Courtesy of FORD MOTOR COMPANY
