Floor Console: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
NOTE: Console with arm rest shown, console without arm rest similar.
  1. Remove the front seats. Refer to: Front Seat .

    Vehicles with automatic transmission

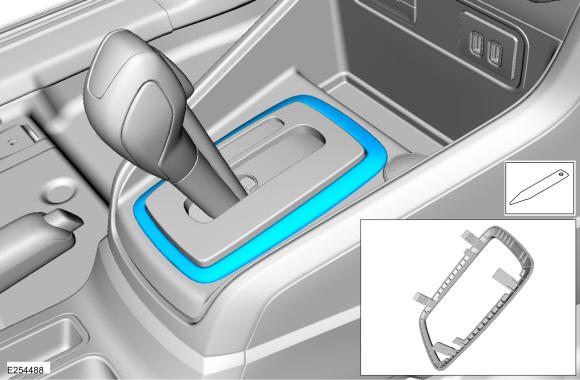

  2. Remove the selector lever trim panel. Use the General Equipment: Interior Trim Remover
    GFD329061Courtesy of FORD MOTOR COMPANY

    All vehicles

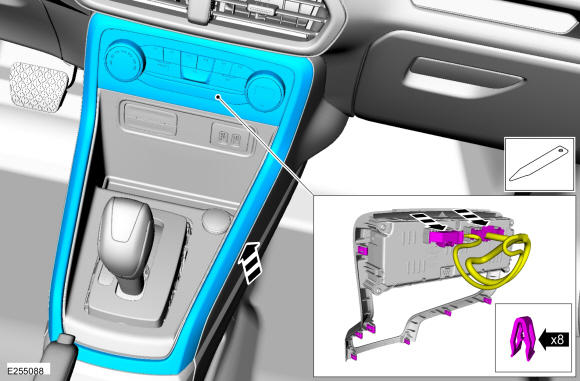

  3. Remove the floor console upper trim panel.

    • Disconnect the electrical connectors. Use the General Equipment: Interior Trim Remover

    GFD329062Courtesy of FORD MOTOR COMPANY

    Vehicles with automatic transmission

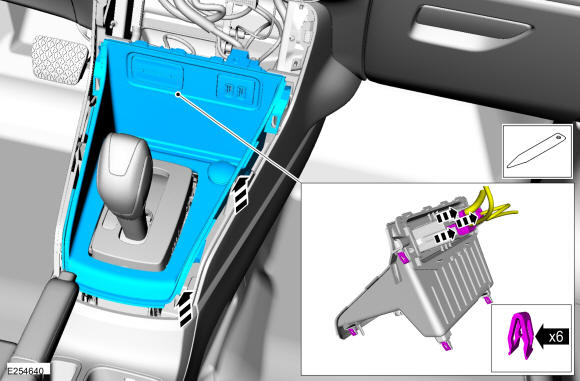

  4. Remove the selector lever finish panel.

    • Disconnect the electrical connectors. Use the General Equipment: Interior Trim Remover

    GFD329063Courtesy of FORD MOTOR COMPANY

    Vehicles with manual transmission

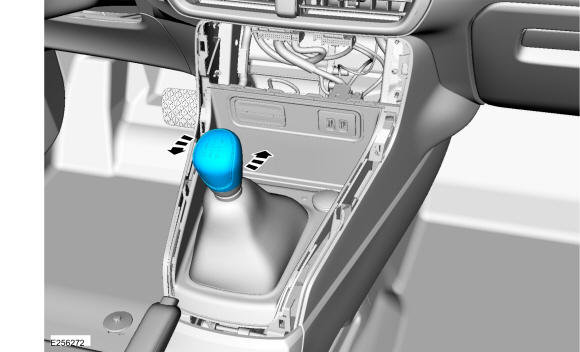

  5. Remove the selector lever knob.
    GFD329064Courtesy of FORD MOTOR COMPANY

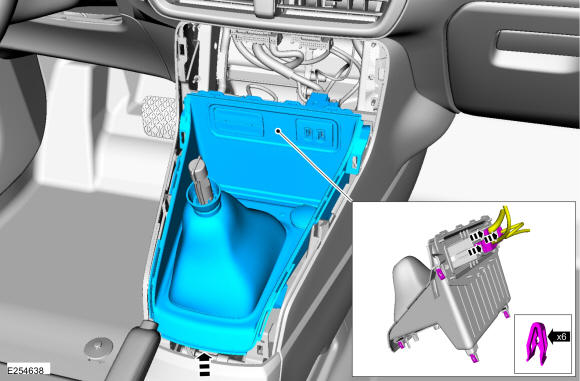

  6. Remove the selector lever finish panel.

    • Disconnect the electrical connectors.

    GFD329065Courtesy of FORD MOTOR COMPANY

    All vehicles

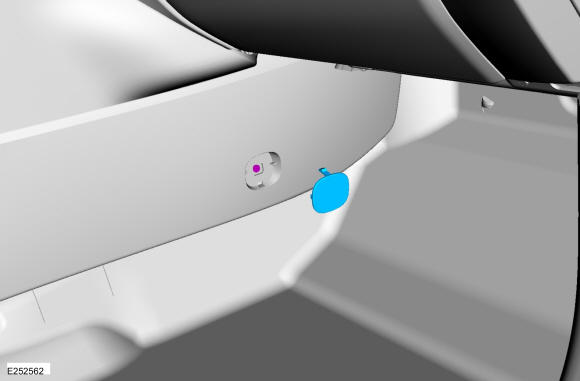

  7. Remove the RH cover and bolt.

    Torque: 36 lb.in (4.1 Nm)

    GFD329066Courtesy of FORD MOTOR COMPANY
  8. NOTE: When installing the RH floor console front trim panel be careful as to not damage the panel while inserting it into the floor console upper finish panel.

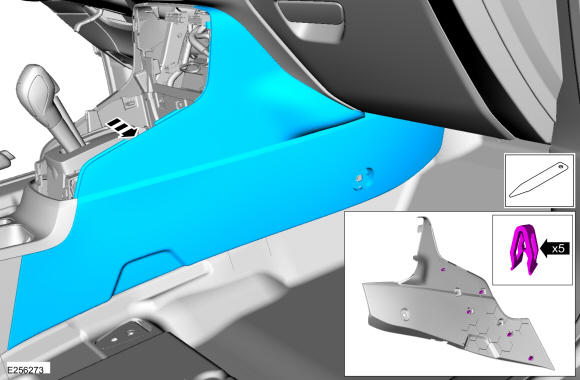

    Remove the RH floor console front trim panel.

    GFD329067Courtesy of FORD MOTOR COMPANY

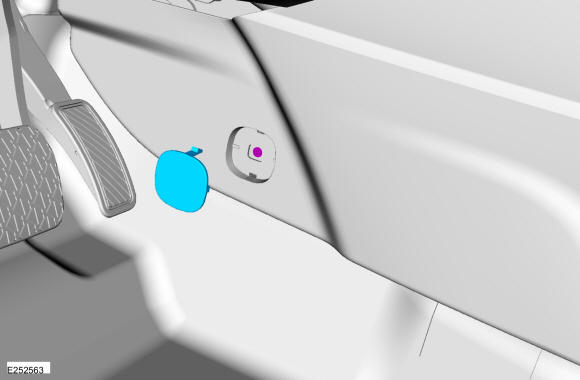

  9. Remove the LH cover and bolt.

    Torque: 36 lb.in (4.1 Nm)

    GFD329068Courtesy of FORD MOTOR COMPANY
  10. NOTE: When installing the LH floor console front trim panel be careful as to not damage the panel while inserting it into the floor console upper finish panel.

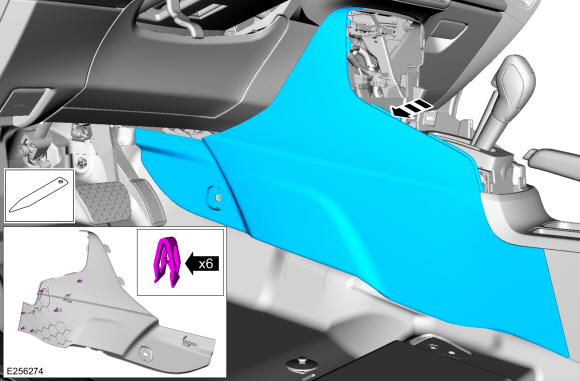

    Remove the LH floor console front trim panel. Use the General Equipment: Interior Trim Remover

    GFD329069Courtesy of FORD MOTOR COMPANY
  11. NOTE: If equipped.

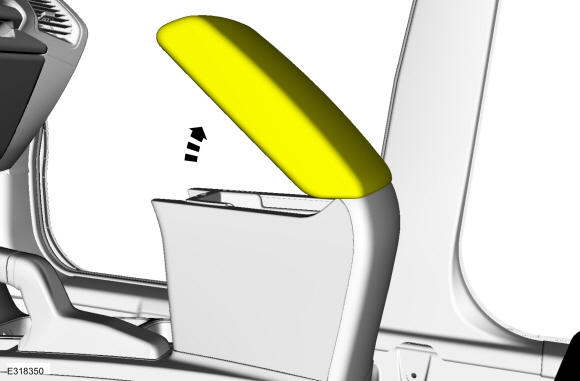

    Open the floor console arm rest.

    GFD329070Courtesy of FORD MOTOR COMPANY
  12. NOTE: If equipped.

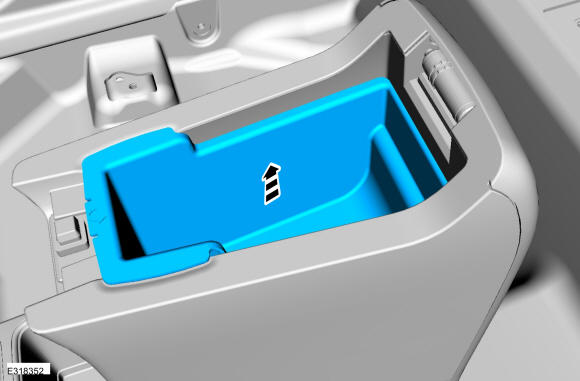

    Remove the tray.

    GFD329071Courtesy of FORD MOTOR COMPANY
  13. NOTE: If equipped.

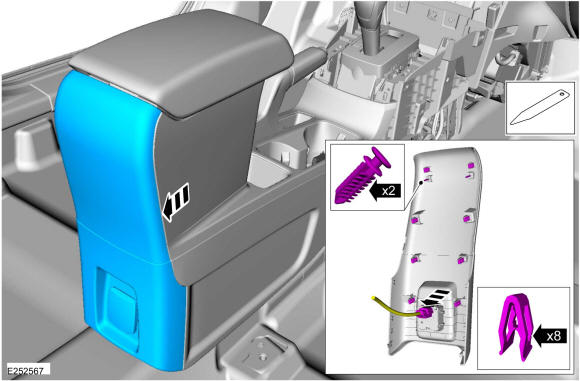

    Remove the floor console rear trim panel.

    • Disconnect the electrical connector. Use the General Equipment: Interior Trim Remover

    GFD329072Courtesy of FORD MOTOR COMPANY
  14. NOTE: If equipped.

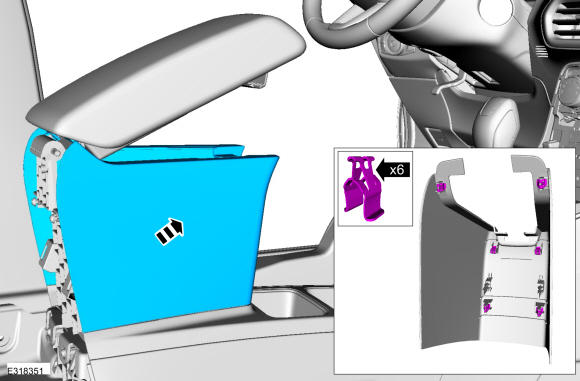

    Release the clips and remove the trim panel.

    GFD329073Courtesy of FORD MOTOR COMPANY

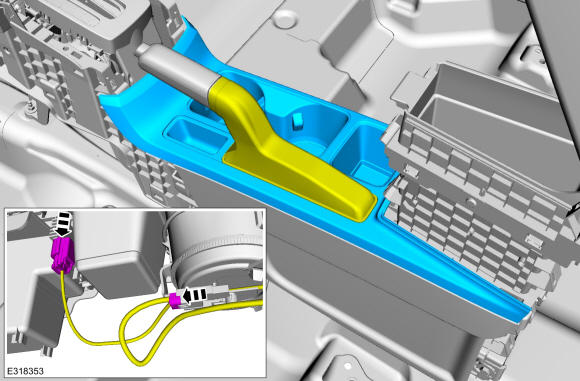

  15. Release the clips and remove the floor console upper finish panel.

    • Disconnect the electrical connectors.

    GFD329074Courtesy of FORD MOTOR COMPANY

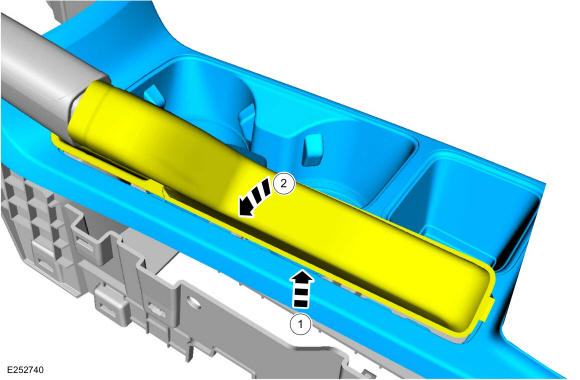

    1. Position the park brake lever boot upward.
    2. Rotate the park brake lever boot so that it fit through the opening in the floor console upper finish panel.
    GFD329075Courtesy of FORD MOTOR COMPANY
  17. Release the harness retainers and position aside the harness.

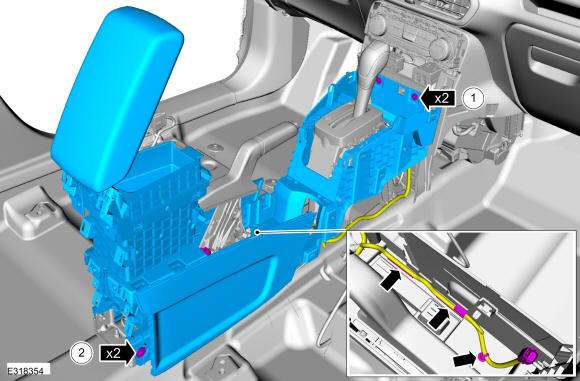

    1. Remove the front floor console bolts.

      Torque: 22 lb.in (2.5 Nm)

    2. Remove the rear floor console bolts and the floor console.

      Torque: 36 lb.in (4.1 Nm)

GFD329076Courtesy of FORD MOTOR COMPANY
