Brake Vacuum Pump - 1.0L EcoBoost (92kW 125PS): Installation

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

To install, reverse the removal procedure.
NOTE: Make sure that the couplings are aligned.

NOTE: Make sure that the mating faces are clean and free of foreign material.

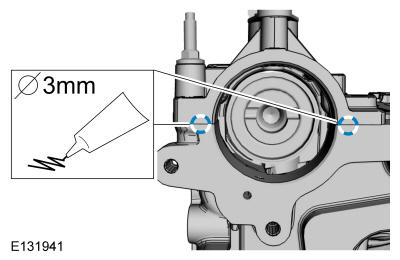

Apply an 3 mm bead of the specified sealant in the location shown.

Material: Flange Sealant - Anaerobic / Loctite® 51031 (WSK-M2G348-A7)

Courtesy of FORD MOTOR COMPANY
