Brake Booster - LHD: Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the battery tray. Refer to: Battery Tray .
- Remove the brake master cylinder. Refer to: Brake Master Cylinder .

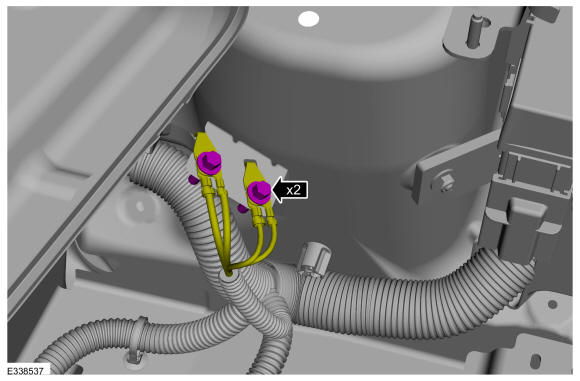

- Remove the ground strap bolts.
Torque: 106 lb.in (12 Nm)

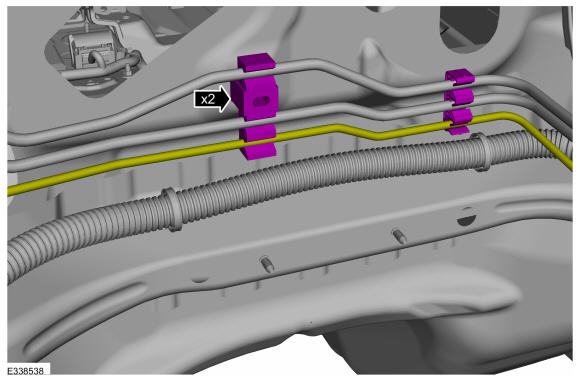

- Position the brake line clip off of the bulkhead stud and release the lower brake line from the clips.
1.0L EcoBoost (92kW/125PS) (B7)

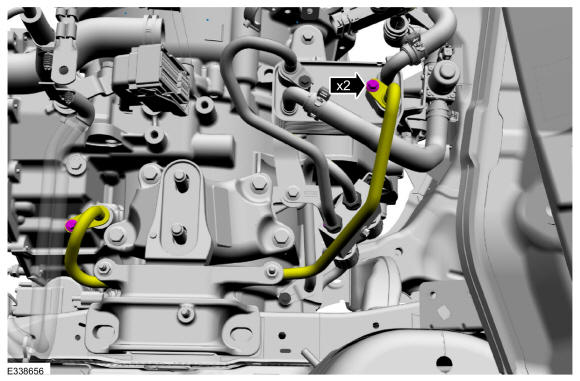

- Remove the bolts and position aside the transmission cooler tube.
Torque: 97 lb.in (11 Nm)
All vehicles
NOTE: Do not service the brake pedal or brake booster without first removing the stoplamp switch. This switch must be removed with the brake pedal in the at-rest position. The switch plunger must be compressed for the switch to rotate in the bracket. Attempting to remove the switch when the plunger is extended (during pedal apply) will result in damage to the switch. - Remove the stoplamp switch. Refer to: Stoplamp Switch .

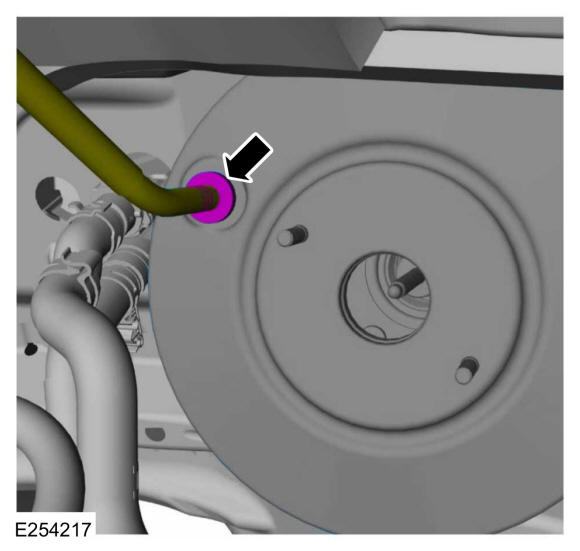

- Detach the check valve from the brake booster.

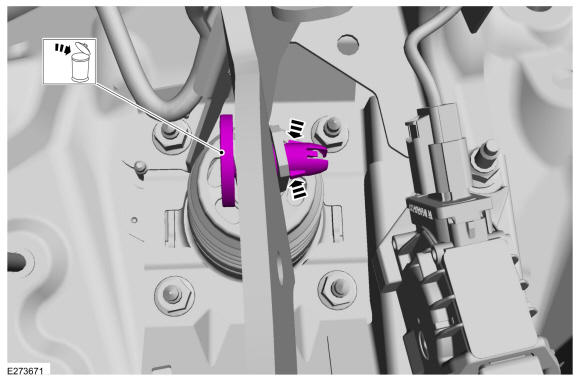

- Press the tabs and remove the clevis pin. Discard the pin.

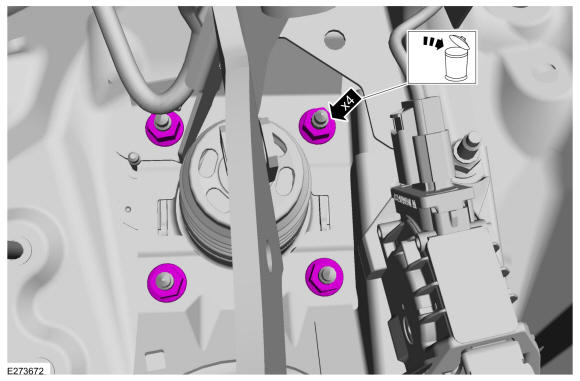

- Remove and discard the brake booster nuts.

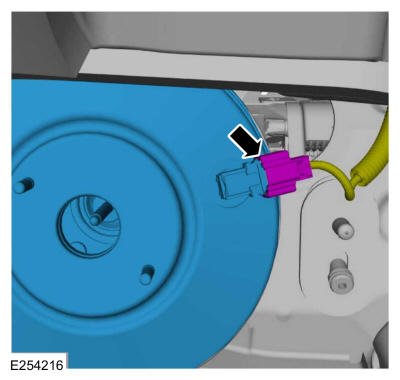

- Disconnect the vacuum sensor electrical connector and remove the brake booster.
