Brake Booster - LHD: Installation
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Make sure that the brake booster pushrod is correctly located.
- To install, reverse the removal procedure.

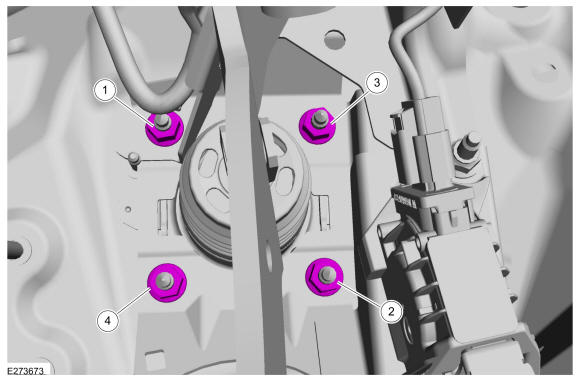

- Install the brake booster and tighten the nuts in sequence.
Torque: 18 lb.ft (25 Nm)
 Courtesy of FORD MOTOR COMPANY
|
