Transfer Case Input Shaft Seal RH: Installation

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

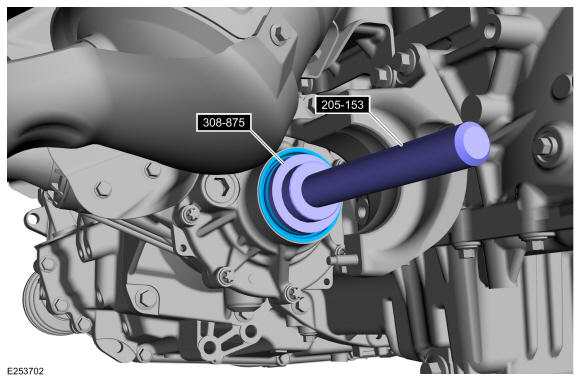

  1. Using the special tools, install a new RH input shaft seal. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 308-875 Installer, Inboard Cover Seal.
    GFD327845Courtesy of FORD MOTOR COMPANY
  2. Install the RH Front halfshaft.
