Rear Subframe - AWD: Installation

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

To install, reverse the removal procedure.

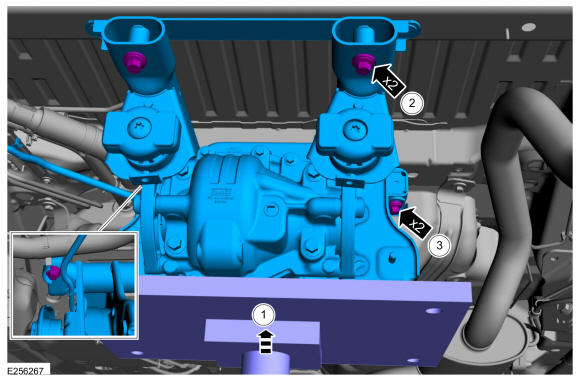

1. Partially raise the rear subframe and position it to the vehicle. Use the General Equipment: Transmission Jack
2. Install the new rearward rear subframe bolts.
  Torque: 59 lb.ft (80 Nm)
3. Install the new forward rear subframe bolts.
  Torque: 59 lb.ft (80 Nm)
Courtesy of FORD MOTOR COMPANY
Check and, if necessary, adjust rear toe. Refer to: Rear Toe Adjustment - AWD .
